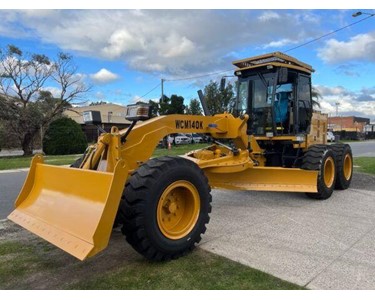

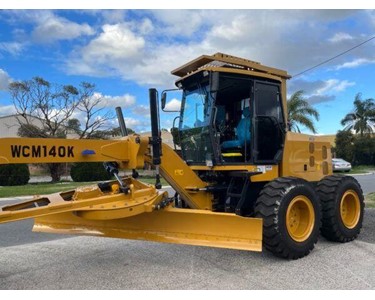

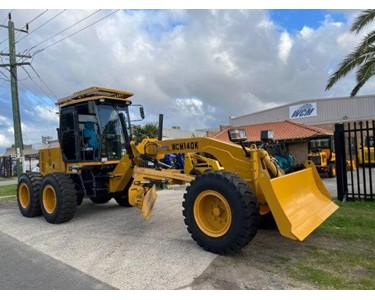

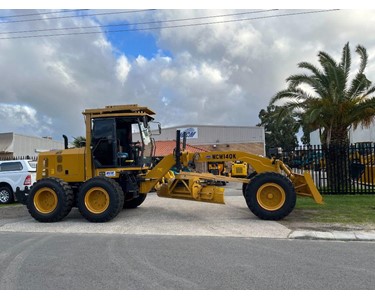

The WCM140K motor grader is built for heavy-duty grading and earthmoving tasks. Powered by a 125HP Weichai WP6G125E22 six-cylinder turbo diesel engine, it features a 4 forward and 4 reverse power shift transmission with a maximum speed of 40 km/h. The grader comes with a front blade capable of 360-degree rotation, side shifts, and inclination adjustments, as well as a rear 5-shank ripper. The air-conditioned cabin with ROPS/FOPS, suspension seat, radio, and reverse camera ensures operator comfort. Additional features include battery isolator switch, foot and hand throttle, disc brakes, and durable 16/70-24 tube tyres.

• Operation Weight: 9.5 Ton
• Tandem 4 wheel drive
• Engine: Weichai WP6G125E22, 125HP, 6cyl, Turbo,  water cooled
• Transmission: Power Shift. 4F/4R. Max speed: 40KM/H, 4WD
• Front blade

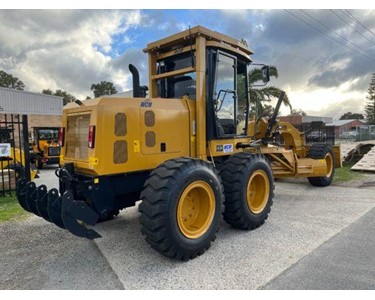

• Rear ripper, 5 shank
• Blade dimensions: 12 feet (3658*450mm)
• Side shift of blade : 600/600mm left/right
• Width of front blade: 2110mm
• Blade Rotate 360 degrees
• Max inclined angle of blade F/R: 18/12 degrees
• Max inclined angle of blade L/R: 35 degrees
• Max depth of blade into ground: 510mm
• Max height of blade off ground: 450mm
• Max dept of ripper into ground: 200mm
• Front wheel lean left/right 12 degrees
• Max articulation of chassis: 25 degrees

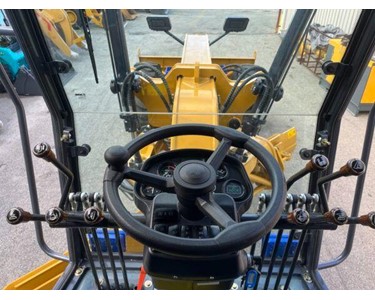

•  A/C cabin, with ROPS, FOPS.
• Radio, Reverse Camera
• Suspension seat
• Battery Isolator switch
• Foot throttle and hand throttle
• Disc brake
• Tyre: 16/70-24, tube
• Dimension: 8925L x 2680W x  3350H mm
