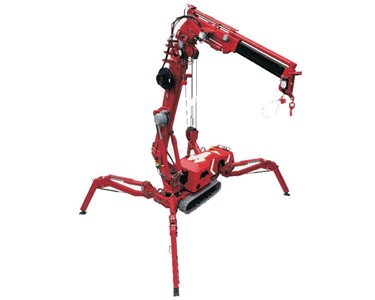

Mini Spider Crane​ | SPT299 Get latest price

The SPT299 Spider Crane, renowned for its compactness and multifunctionality, is a pivotal tool in sectors such as construction and specialised lifting operations. This crane is distinguished by its maximum loading capacity of 2.95t at a 1.4m radius, bolstered by a working radius of up to 8.83m at 0.15t. It boasts ground lifting heights of 9.5m at 0.7t and underground lifting capacities of 10m-4 fall, 20m-2 fall, and 40m-1 fall.

• Manufacturer: SPT
• Lifting capacity max. 2,950 kg
• Working radius 11.5 m
• Hook height max. 9.7 m (14.5 m incl. jib)
• Gradeability: max. 20° or 36
• Craning below ground: 10.0 m/4-fold, 20.0 m/2-fold, 40.0 m/1-fold shear
• Rope length SPT299
• 1-fold sheared = 40 metres
• 2-fold sheared = 20 metres
• 4-fold sheared = 10 metres
• L/W/H 3,600 mm x 900 mm x 1,650 mm
• Combination drive diesel/electric 240 V
• Diesel engine 3TNV74F (YANMAR) 11.2 kW 2,400 rpm
• Own weight approx. 2,750 kg

To contact SPT Cranes Australia about Mini Spider Crane​ | SPT299 use Get a quote.

The SPT299 Spider Crane, renowned for its compactness and multifunctionality, is a pivotal tool in sectors such as construction and specialised lifting operations. This crane is distinguished by its maximum loading capacity of 2.95t at a 1.4m radius, bolstered by a working radius of up to 8.83m at 0.15t. It boasts ground lifting heights of 9.5m at 0.7t and underground lifting capacities of 10m-4 fall, 20m-2 fall, and 40m-1 fall.

• Manufacturer: SPT
• Lifting capacity max. 2,950 kg
• Working radius 11.5 m
• Hook height max. 9.7 m (14.5 m incl. jib)
• Gradeability: max. 20° or 36
• Craning below ground: 10.0 m/4-fold, 20.0 m/2-fold, 40.0 m/1-fold shear
• Rope length SPT299
• 1-fold sheared = 40 metres
• 2-fold sheared = 20 metres
• 4-fold sheared = 10 metres
• L/W/H 3,600 mm x 900 mm x 1,650 mm
• Combination drive diesel/electric 240 V
• Diesel engine 3TNV74F (YANMAR) 11.2 kW 2,400 rpm
• Own weight approx. 2,750 kg
