Mikasa - Reversible Plate Compactor MVH-158GH

Supplier: Taman

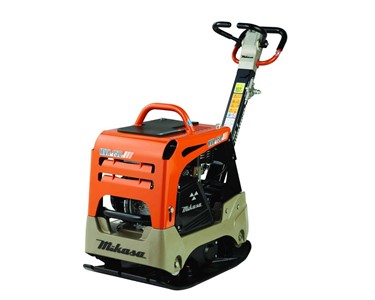

Reversible Plate Compactor MVH-158GH

Mikasa Reversible Plate Compactors set the standard for efficient compaction of sand, gravel and cohesive soils in trenches and large construction projects.

Receive 1-3 days from order

Mikasa Reversible Plate Compactors set the standard for efficient compaction of sand, gravel and cohesive soils in trenches and large construction projects. They offer high-compaction capacity, superior travel speeds and feature fully hydraulic direction control for easy direction change. They are ideally suited for civil construction works, drainage contractors and the rental industry.

– Honda GX200 4-stroke engine provides hassle free operation and low engine emissions

– Engine hour meter and tachometer for efficient management of service intervals and monitoring of engine rpm for optimum compaction performance

– Central lifting hook for safe onsite handling

– Forward/reverse control lever with built-in actuator for seamless and smooth transition between both forward and reverse motions

– Cyclonic air filtration system for superior air filtration lengthen service intervals and improve engine protection

– Anti-vibration handle for reduced hand and arm vibration transfer to the operator

– Height adjustable handle for improved operator comfort

– Sealed clutch and belt guard protects against the ingress of dust and other unwanted materials that can prematurely wear out critical clutch components and V-belt

– Robust full engine protection frame provides superior protection against engine damage and its hinge design simplifies maintenance and offers convenient access to all serviceable components

Specifications:

– Model: MVH-158GH

– Engine and power: Honda GX200 6.5 hp

– Fuel type: Petrol

– Operating weight: 145 kg

– Plate size (wxl): 430 mm x 700 mm

– Centrifugal force (max): 27 kN

– Vibration frequency: 5400 vpm

– Max travel speed*: 26 m/min

– Max gradeability: 35%

– Max compacted area: 670 m2/h

* Travel speeds vary based on different soil conditions. Specifications published are based on average performance results.
