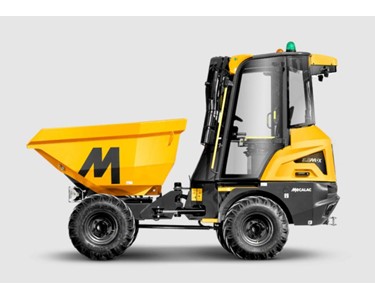

Mecalac - Tip & Site Dumper | 3.5MDX Get latest price

Read more...

To contact Mecalac about Mecalac Tip & Site Dumper | 3.5MDX use Get a quote.

PERFORMANCE: The 3.5MDX is a compact and maneuverable machine, providing an effective solution for carrying high payloads in confined spaces, in any ground condition and for a large variety of applications.

COMFORT: This model adopts Mecalac’s proven MDX cab with optional air-conditioning to provide an outstanding level of operator well-being in any weather condition. Like all MDX models, the unique cabin layout minimizes vibration and noise, while ergonomic controls and an adjustable seat provide a relaxed environment when working for extended periods.

SAFETY: Alongside the cab conforming to ROPS / FOPS standards, safety has been prioritized by incorporating MDX design characteristics which results in easier and safer access to the cab, outstanding all-around visibility and a higher level of operator protection in any situation.

Specifications

• Total operating weight: 2840 kg (6261 lb) to 2990 kg (6592 lb)
• Engine power: 37 kW (50 hp)
• Skip type: Front / Swivel
• Payload: 3500 kg (7716 lb)
• Maximum skip capacity (Heaped): 1.88 m³ (2.45yd³) to 2.2 m³ (2.88yd³)
• Transmission (Road): Hydrostatic
• Travel speed: 20 km/h (12.4 mph)
• Operator environment: ROPS/FOPS cab
• Overall width: 1846 mm (6’1”) to 1957 mm (6’5”)
• Overall length: 3821 mm (12’6”) to 4012 mm (13’2’’)
• Overall height: 2663 mm (8’9’’)
• Dumping height, skip tipped: 248 mm (10”) to 841 mm (2’9’’)
