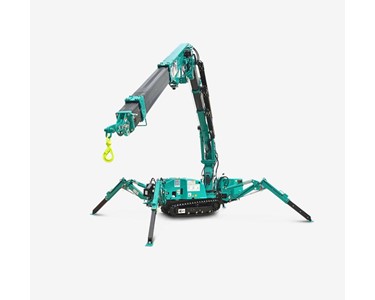

Maeda - Spider Crane | MK1033CW-1 Get latest price

Read more...

To contact Pace Cranes about Maeda Spider Crane | MK1033CW-1 use Get a quote.

Capacity: 0.995t X 1.3m

Max. working radius: 9.9m X 0.18t

Max. Lifting Height: 11.3m

Max. reach below ground level: -66.5m (single fall)

Main Boom Telescopic System:

• • Fully automatic 3-section pentagonal telescopic boom (2 and 3 section: simultaneous telescoping)
  • Boom Length: 2.590m – 6.03m.
  • Boom telescoping stroke/time: 3.44/15/5sec [0.22m/sec]

Boom Hoist System - Hoist angle/time: 0 to 80deg/42.2sec

Ground pressure: 0.513kgf/cm2

Swing System - Hoist Angle/Time: lWRC6 x Fi(29) Ø10 x 150m

Telescopic system type: Fully automatic 5-section pentagonal telescopic boom

Engine: Diesel

Overall length × width × height: 2,710 X 750 X 1,970 mm

Machine weight: 2,000kg

New options: 820kg Auxilary Winch, Petrol Engine, 380V Electric Motor

Lifting down with below track level: 65m with optional winch (single fall)

Standard Equipment: Level, Machine body inclination alarm, EMO switch, Hydraulic safety valves, Overwind protection, Wire rope latch, Crane/Outrigger interlock device, Moemnt limiter, Data logger, slew restriction device

Optional Equipment: 820kg winch (single fall), white tracks
