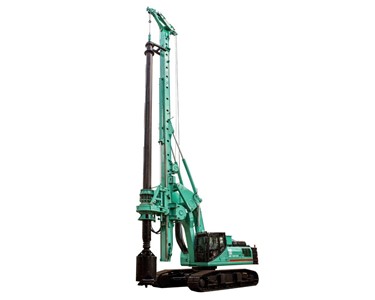

LiuGong - Multi-Function Drilling Rig | SD15A

Supplier: LiuGong

Multi-Function Drilling Rig | SD15A

LiuGong's multi-function drill rigs get you the results in the most challenging places.

Receive 1-3 days from order

Key specifications:

Operating weight: 4,500kg
Rated power: 150@2050kw/rpm
Rotary torque: 150knm

Features

High Efficiency Drilling

The preferred model in the field of soil and rock layer construction, smooth compound movement control, adjustable torque and rotation speed of rotary drive, suitable for different kinds of geological conditions and construction methods.

Intelligent Control System

The Upper-Carrie is built for high efficiency, cost saving, comfort, and durability.

Multi-oil pump operation to increase effective output.
Specialised control valve for drilling machine function reducing power loss.
Enlarged and well-organised spacious compartment easily accessible for maintenance.

Strong and Accurate

Parallelogram support structure with the dual activating arm ensures strength and rigidity. The Rotary head can be equipped with a variety of sizes of Kelly bar. The Undercarriage boasts high strength slewing bearing support with oversize ground contact bearing capacity to sustain larger over turning torque. The Mast Head is strong and light weight, suitable for transportation and the mast's rectangular tube structure ensures hole forming accuracy.

Reliable Performance

Trusted Cummins QSB7 engine with tehnology to control the main pump which boosts engine power performance.

To contact LiuGong about LiuGong Multi-Function Drilling Rig | SD15A use Get a quote.
