Lanuss - LSP L1000 Sanding and Deburring Machine Get latest price

Read more...

To contact Laser Machines about Lanuss LSP L1000 Sanding and Deburring Machine use Get a quote.

The Lanuss LSP-L1000 is a cutting-edge sanding and deburring machine designed to deliver precision and efficiency in metal surface finishing. With a robust working width of 1000mm, it easily handles a variety of material sizes, making it perfect for industries requiring consistent deburring, edge rounding, and sanding. Its modular design offers flexible configurations to meet diverse finishing requirements, while the advanced dust extraction system ensures a cleaner and safer work environment.

This machine combines user-friendly operation with durable construction, providing reliable performance and superior results in every project. Whether you're streamlining your workflow or aiming for impeccable surface finishes, the Lanuss LSP-L1000 is the ideal solution.

How It Works

The equipment removes slag and burrs from the workpiece surface in a multi-step process:

??Abrasive Belt Station: Eliminates large burrs and remaining slag particles effectively.

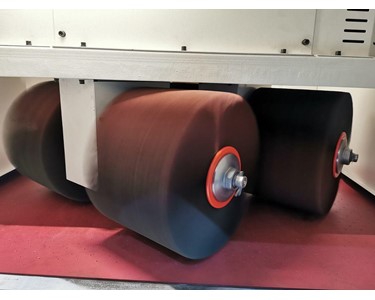

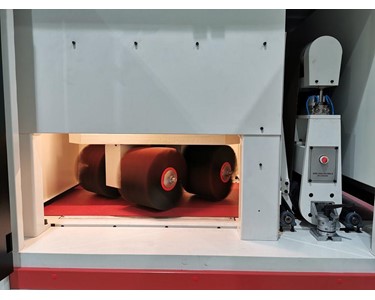

Universal Sand Roller Brush System: Utilises four rotating sanding roller brushes to remove slag and refine edges and inner holes. The process ensures no burrs remain, maintains the accuracy of the workpiece edges, and achieves uniform R-angle rounding (customisable using different abrasive belts and processes). The dimensional integrity of the workpiece is preserved throughout.

Additionally, the abrasive belt station and sanding roller brush system can operate independently:

• The Abrasive Belt Station is ideal for processing metal hairlines, polishing, peeling, and slag removal.
• The Sanding Roller Brush System ensures 360° deburring, particularly for laser-cut and CNC-punched sheet metal parts with protective coatings. This system removes burrs without damaging the coating or scratching the surface, thanks to specially designed soft abrasive brushes that target burrs only.

Conveying System: The equipment features a strong vacuum negative pressure adsorption system that securely holds workpieces over 50mm in size without additional tooling. For special workpieces, optional tooling can be used. The transmission system offers variable speed control for precise operation.

Dust and Safety Management: The machine includes a wet vacuum cleaner to minimise safety risks and efficiently manage grinding dust. A high-pressure, high-flow fan directs dust to a collection chamber, where it is captured through water spray deposition and filtered for environmental safety. Clean air is then discharged, ensuring a safe and clean working environment. The system also recycles and collects metal powder, supporting eco-friendly production practices.

Basic Specifications:

• Working Width: 1000mm
• Processing Thickness: 0.5 - 80mm
• Min. Processing Size: 50 x 50mm
• Dimensions (L x W x H): 2935 x 2060 x 2150mm
• Worktable Height: 870mm
• Voltage: 380V
• Total Power: 33.05 kW
