When generating compressed air, significant amounts of oil-containing condensate are produced. Oil/water separators adsorb the oil, ensuring the discharge water meets regulatory standards.

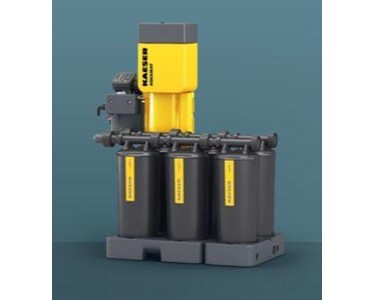

With the AQUAMAT i.CF, KAESER has redefined the concept of condensate treatment. Accordingly, the oil/water separator, available for compressor flow rates from 10.3 to 92.6 m³/min, is equipped with the innovative AQUAMAT CONTROL controller for the first time. This advanced system takes over active process control and ensures clean, predictable maintenance.

Thanks to ergonomic cartridges, filter material replacement is performed cleanly and without direct contact with the condensate, thereby safeguarding both the environment and service personnel. The modular design concept means that model capacity can be adjusted retrospectively.

For treatment of smaller amounts of condensate, the practical Aquamat CF 3 and 6 models are available.

Your benefits

• Safe
  AQUAMAT CONTROL takes over active process control: It makes optimal use of the filter material, determines the residual capacity of the cartridges based on load, makes maintenance predictable and drains the condensate at the touch of a button, thereby ensuring sustainable condensate treatment – and is of course network-capable, as well as being approved by the German Institute for Structural Engineering Berlin (DIBt).
• Clean
  The cartridge can absorb the entire volume of oil and is equipped with an ergonomic handle. In addition, a bayonet fitting on the collector and a drip-stop valve on the bottom of the cartridge ensure maintenance work can be taken care of swiftly. This protects service personnel and the environment from contamination. The drained cartridge weighs under 25 kg.
• Modular
  One cartridge size for all models. Practical retrofit kits for subsequent capacity adjustment.
