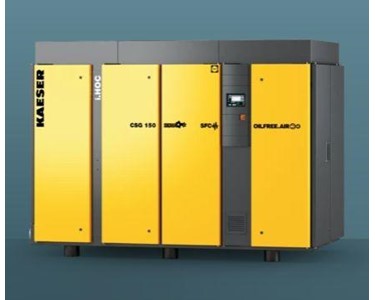

KAESER Compressors - Oil Free Screw Compressor | With air dryer 37 to 355 kW Get latest price

Read more...

To contact KAESER Compressors Australia about KAESER Compressors Oil Free Screw Compressor | With air dryer 37 to 355 kW use Get a quote.

The patented i.HOC rotary dryer from Kaeser uses up to 100 % of compressor heat! Thanks to full-flow regeneration, it delivers reliable pressure dew points up to an ambient temperature of 45 °C – completely without electrical heating or additional cooling of the regeneration air!

• Installed in air-cooled or water-cooled units
• Unit rated power from 37 kW to 355 kW
• Unit flow rates from 4.2 m³/min to 51 m³/min
• Integrated SIGMA CONTROL 2 compressor controller (SFC model versions)

Your advantages

• Sub-zero pressure dew points even in high ambient temperatures:
  Thanks to its extraordinary regeneration potential, the i.HOC delivers below-zero pressure dew points even with high cooling medium temperatures.
• Pressure dew point stability even with variable flow rates:
  The pressure dew point remains stable even with low compressor load – no partial-load compensation required.
• Effective drying AND heat recovery:
  i.HOC uses the heat exchangers of the second compression stage, which have been optimised for heat recovery, as regeneration air coolers.

The i.HOC (Integrated Heat of Compression Dryer) uses 100 % of the heat of compression from the second compressor stage for drying purposes (full-flow regeneration). This heat, which is produced in any case, is therefore effectively available at zero cost.

• No additional energy input for the drying process
• Higher regeneration potential than dryers with partial-flow regeneration
• Full performance, even at low compressor load

The advantages of full-flow regeneration become particularly evident at increased cooling medium temperatures. KAESER rotation dryers achieve outstanding drying results, even without additional electrical heating of the regeneration air.

Read less...

To contact KAESER Compressors Australia about KAESER Compressors Oil Free Screw Compressor | With air dryer 37 to 355 kW use Get a quote.
