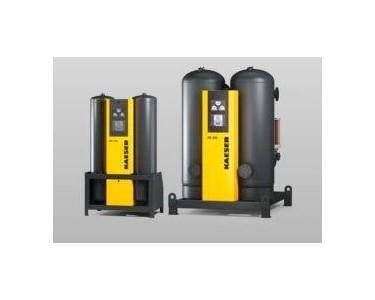

Desiccant Dryer | 1.60 to 155.50 m³/min

Heatless regenerative desiccant dryers from 1.60 to 155.50 m³/min

Receive 1-3 days from order

From frost protection to high-tech applications

Desiccant dryers from the i.DC series can lower the pressure dew point of the compressed air to -70°C. They combine reliable system design, impressive energy efficiency and exceptionally low maintenance costs. Enjoy dependable frost protection for your control valves and lines while producing dry compressed air for sensitive processes with minimal total costs.

PDP down to -70 °C
Flow rate 1.60 to 155.50 m³/min
Energy-saving ECO CONTROL 3 for comprehensive system monitoring
Can optionally be coupled to an ACT activated carbon adsorber – for technically oil-free compressed air to meet the strictest requirements

Your benefits

Reliable and compact:
High-quality components, water-resistant high-performance desiccant and generous fill levels. All models are installed on a rugged, space-saving frame.
ECO CONTROL 3 – efficient and network-capable:
The network-capable controller with 7” touch display provides comprehensive system monitoring with an extensive reporting system, graphic display of process parameters and a P&I diagram with integrated real-time data. The standard-equipped Dew point trend recognition control ensures significant energy savings during partial load operation. With the optional pressure dew point sensor, the pressure dew point can be displayed and also used as a control variable, alternatively to trend recognition.
Low-maintenance design:
Thanks to resource-friendly operation with particularly long cycle times, high-quality components such as the valves, and generous desiccant fill levels, we recommend a complete overhaul only every 5 years. This is more cost-efficient, since the overhaul procedure is quick and simple – and after all, time is money.

To contact KAESER Compressors Australia about KAESER Compressors Desiccant Dryer | 1.60 to 155.50 m³/min use Get a quote.

From frost protection to high-tech applications

PDP down to -70 °C
Flow rate 1.60 to 155.50 m³/min
Energy-saving ECO CONTROL 3 for comprehensive system monitoring
Can optionally be coupled to an ACT activated carbon adsorber – for technically oil-free compressed air to meet the strictest requirements

Your benefits

Reliable and compact:
High-quality components, water-resistant high-performance desiccant and generous fill levels. All models are installed on a rugged, space-saving frame.
ECO CONTROL 3 – efficient and network-capable:
The network-capable controller with 7” touch display provides comprehensive system monitoring with an extensive reporting system, graphic display of process parameters and a P&I diagram with integrated real-time data. The standard-equipped Dew point trend recognition control ensures significant energy savings during partial load operation. With the optional pressure dew point sensor, the pressure dew point can be displayed and also used as a control variable, alternatively to trend recognition.
Low-maintenance design:
Thanks to resource-friendly operation with particularly long cycle times, high-quality components such as the valves, and generous desiccant fill levels, we recommend a complete overhaul only every 5 years. This is more cost-efficient, since the overhaul procedure is quick and simple – and after all, time is money.

Read less...

To contact KAESER Compressors Australia about KAESER Compressors Desiccant Dryer | 1.60 to 155.50 m³/min use Get a quote.

P-5100-AUS-6-22_166-4890(3.02MB)

Air Treatment Diagram for Rotary Screw Compressors P-711-AUS-4-21_166-21631(3.86MB)
