JOIE PACK Flow Wrapper - Rotary End Sealing ...

JOIE PACK - Flow Wrapper - Rotary End Sealing

Supplier: MPI Australia

Flow Wrapper - Rotary End Sealing

MPI’s Flow Wrappers with rotary end sealing deliver high-speed, versatile packaging for food, healthcare, and consumer goods. With models from compact to advanced servo systems, they ensure precision, efficiency, and reliable performance.

Applications

Flow Wrappers with rotary end sealing are ideal for packaging a wide range of food and non-food products, including bakery goods, confectionery, biscuits, frozen and refrigerated items, fresh produce, noodles, tissues, medical products, hardware, tools, and more.

Key Features and Specifications

Flow Wrappers are available in multiple models, each designed for different production needs. Below is a comparison of key specifications:

Model Type	Capacity (PPM)	Bag Length (mm)	Max. Film Width (mm)	Max. Product Width (mm)	Max. Product Height (mm)	Control / Drive	Key Features

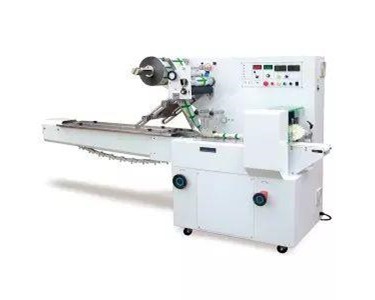

Compact Mechanical (CWM-35/47/61)	10–230	60–500	350–610	145–270	70–100	PLC + inverter	Entry-level, cold & heated center sealers, photocell mark registration
Compact Servo (CWS-35/47/61)	20–230	60–450	350–610	145–265	30–90	Servo 1-axis + Siemens PLC	Touchscreen, memory for 50 products, stable film tension

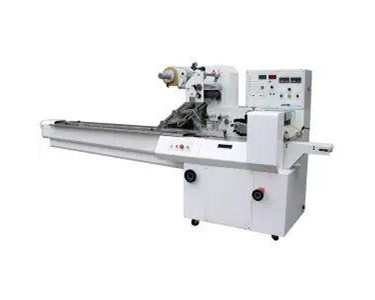

Horizontal Flow (JE-535/547/561)	10–230	60–500	350–610	145–270	70–100	PLC + inverter	Modular forming box, bag length adjustment, dual center sealers
Horizontal Flow Packing (M-5235/47/61)	20–270	70–450	350–610	145–265	30–90	PLC	Auto disengage overload protection, brush belt transfer, quick film change
Servo Wrapper (S-5535/47/61)	20–270	70–500	350–610	145–265	30–90	1-axis servo + Siemens PLC	CE safety, memory for 50 products, touch panel, auto centering reel

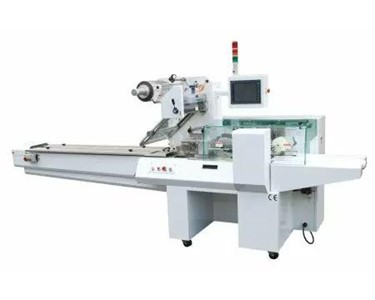

Servo Wrapper Advanced (S-5635/47/61)	20–270	70–500	350–610	145–265	30–90	3-axis servo + Motion Controller	100 product memory, overload protection, top brush belt, easy change-over

Why Choose This Product

Flow Wrappers with rotary end sealing deliver consistent high-speed performance, compact design, and versatile packaging capabilities. With models ranging from entry-level to advanced servo-driven systems, they provide the right balance of productivity, precision, and cost-effectiveness. Their modular design, simple changeovers, and safety features make them highly reliable for continuous operation.

Targeted Segments

Food Industry: Bakery, confectionery, biscuits, noodles, frozen and fresh foods.
Healthcare & Pharma: Medical products, wet wipes, tissues.
Consumer Goods: Household items, printing materials, detergents.
Industrial & Hardware: Tools, spare parts, accessories.
General Packaging: Products requiring high-speed, flexible pillow pack wrapping.

Applications

Key Features and Specifications

Flow Wrappers are available in multiple models, each designed for different production needs. Below is a comparison of key specifications:

Model Type	Capacity (PPM)	Bag Length (mm)	Max. Film Width (mm)	Max. Product Width (mm)	Max. Product Height (mm)	Control / Drive	Key Features
Compact Mechanical (CWM-35/47/61)	10–230	60–500	350–610	145–270	70–100	PLC + inverter	Entry-level, cold & heated center sealers, photocell mark registration
Compact Servo (CWS-35/47/61)	20–230	60–450	350–610	145–265	30–90	Servo 1-axis + Siemens PLC	Touchscreen, memory for 50 products, stable film tension
Horizontal Flow (JE-535/547/561)	10–230	60–500	350–610	145–270	70–100	PLC + inverter	Modular forming box, bag length adjustment, dual center sealers
Horizontal Flow Packing (M-5235/47/61)	20–270	70–450	350–610	145–265	30–90	PLC	Auto disengage overload protection, brush belt transfer, quick film change
Servo Wrapper (S-5535/47/61)	20–270	70–500	350–610	145–265	30–90	1-axis servo + Siemens PLC	CE safety, memory for 50 products, touch panel, auto centering reel
Servo Wrapper Advanced (S-5635/47/61)	20–270	70–500	350–610	145–265	30–90	3-axis servo + Motion Controller	100 product memory, overload protection, top brush belt, easy change-over

Why Choose This Product

Targeted Segments

Food Industry: Bakery, confectionery, biscuits, noodles, frozen and fresh foods.
Healthcare & Pharma: Medical products, wet wipes, tissues.
Consumer Goods: Household items, printing materials, detergents.
Industrial & Hardware: Tools, spare parts, accessories.
General Packaging: Products requiring high-speed, flexible pillow pack wrapping.
