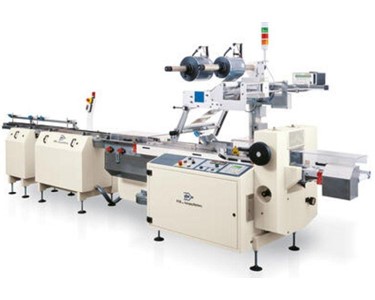

PFM - Horizontal Flow Wrapper | PFM Hurricane Servo XL Price Guide: $99,500 Get latest price

Read more...

To contact Emrich Packaging Machinery about PFM Horizontal Flow Wrapper | PFM Hurricane Servo XL use Get a quote.

Features

• Packaging which is strong, attractive and perfect: the special design of the forming box, optimum calendar and rollers for film transfer and the positioning of components combine to give a machine which wraps products perfectly, producing accurate, crease free seals.
• High flexibility and quick size change: the Hurricane can wrap a wide range of regularly shaped, solid products from the food, stationery, chemical and pharmaceutical sectors. It is not necessary to change any mechanical parts in order to adjust the set-up, this is done by using two hand-wheels which carry out immediate adjustments to the pack length and the speed of the sealing crimpers.
• Heat-sealable materials: special technical solutions have been applied which enable the Hurricane to use heat-sealable materials such as laminated or bonded polypropylene, polyethylene (Poly version), micro-perforated and shrink-wrap materials.

Technical Specifications

• Conforms to EEC standards.
• 2 M long infeed conveyor belt with quick-release and interchangeable pushers.
• 2 hand wheels with numerical reference system for adjusting pack length and crimper speed.
• Forming box with adjustable height and width for different size products.
• 3 sets of wheels for longitudinal sealing: the first draws the wrapping material, the
  second seals the material and the third folds the flap.
• Self-centering reel holder with brake.
• 600 mm long motorized discharge conveyor.
• All product contact parts are built in AISI 304 stainless steel.
• Carbon steel frame, standard colour white RAL 9010 or AISI 304 stainless steel version.

Versions Available

• Extra wide mechanical version: 750 mm reel, 350 mm sealing unit.
• Electronic version (2 axis): 500 mm reel, 250 mm sealing unit.
• Extra Wide electronic version.
• Shrink version: for shrink-wrap materials with crossways and lengthways flush sealing system, excess material recovered.
• Poly version.
