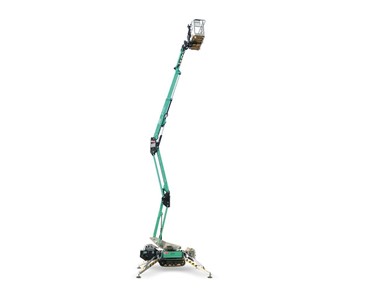

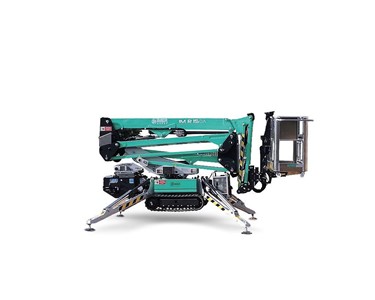

Imer - Spider Lift 15.1m | IMR15DA Get latest price

Read more...

To contact Access Worx about Imer Spider Lift 15.1m | IMR15DA use Get a quote.

Benefits
- Double articulation boom with active jib for a high operability in all construction site conditions.
- State-of-the-art removable control panel: fast and versatile use of the machine.
- Proportional and simultaneous electro-hydraulic controls: efficiency and safety for operators.
- Automatic outriggers levelling: maximum easiness of use and safety.
- Permanent weight control device for improved safety and performance.
- Slewing 360° (not continuous): outstanding aerial accessibility in any work situation.
- Basket rotation ± 62°: complete placement on working site in any condition.
- Compact size, with limited overall outrigger footprint.
- Engine guarded for safety and working protection.
- Aluminium basket 1.40 x 0.70 x 1.10 m.
- Innovative design with fully enclosed structure.

• Automatic outriggers levelling with electronic inclinometer
• Outrigger pads (Ø 200 mm)
• Emergency hand pump
• Cylinder holding valve
• Electronic hour meter
• Load cell
• Hydraulic Jib
• Rubber tracks
• Hydraulically adjustable tracks width
• 230V - 16 A electro-pump for indoor use
• Air / Water outlet in the platform
• 230V - 16 A outlet in the platform
• Honda GX390 petrol engine - 11 HP 3600 rpm / Yanmar L100N diesel engine - 9.9 HP 3600 rpm
• Removable wired control box (5 m cable)

Specifications:

Max Capacity:

• 230kg

Working Height:

• 15.1m
