HEMS - Automatic Digital Cylinder Tester - HE-ADCT01

Supplier: Delahenty Machinery

HEMS – Automatic Digital Tester HE-ADCT-01

HEMS – Automatic Digital Tester [specs]

The models HE-ADCT-01 and HE-ADCT-02 are designed to enable the operator to carry out a full pressure test and to provide documented reports and log management.

Video for HEMS Automatic Digital Cylinder Tester - HE-ADCT01

full pressure test, documented reports

Receive 1-3 days from order

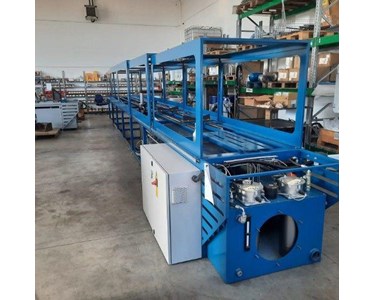

The HE-ADCT testing machines are Automated digital cylinder testers.

The models HE-ADCT-01 and HE-ADCT-02 are designed to enable the operator to carry out a full pressure test and to provide documented reports and log management.

Our model HE-ADCT-02 is designed to test largest cylinders in the marketplace such as Komatsu PC8000 and many others.

You can wash the cylinders with clean oil and have the possibility to control the oil contamination level in compliance with ISO4406.

These Machines also have semi-automatic and manual modes.

Benefits

Safe operation with fully enclosed design
Accurate, repeatable test results
Full traceability with digital test reports
Reduced setup time and improved workflow efficiency

Key Features

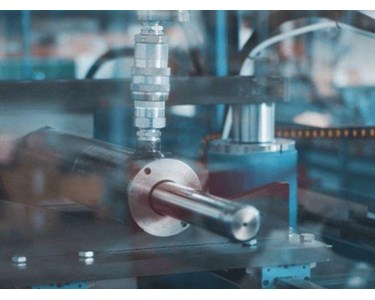

Automated hydraulic cylinder testing and flushing
Integrated hydraulic power pack and large-capacity oil tank
Built-in electrical board and instrumentation
Continuous contamination monitoring during flushing

HE-ADCT-01

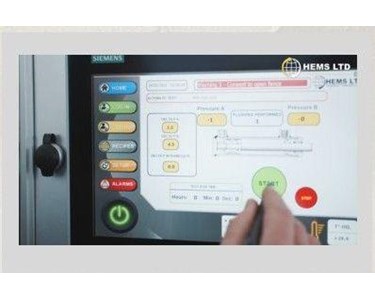

All data validation or not validation are listed on a report including the lot management
USB interface for program backup to unload the test reports
Contamination level is detected in real time / Contamination sensor PARKER ICount PD
Complete safety closure via sliding tunnels
Regular internal cleaning of the tank, eliminating the residues of contaminated material
Heat exchanger to always keep the oil inside the tank cool

HE-ADCT-02

All data validation or not validation are listed on a report including the lot management
USB interface for program backup to unload the test reports
Controlled and reported flushing
Pressure lost record in both stations
Minimum sliding pressure record with oil non-energized seal
Internal seal leak test
Selectable long cycles
Monitoring temperature in the tank
Contamination level is detected in real time / Contamination sensor PARKER ICount PD

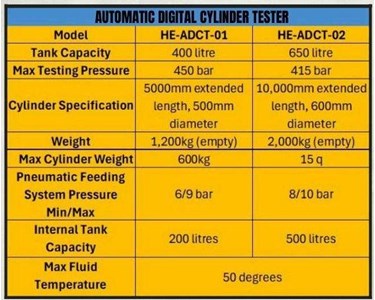

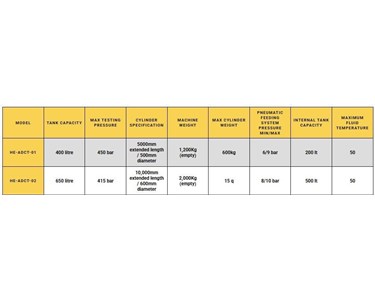

AUTOMATIC DIGITAL CYLINDER TESTER Specifications

Model	HE-ADCT-01	HE-ADCT-02
Tank Capacity	400 litre	650 litre
Max Testing Pressure	450 bar	415 bar
Cylinder Specification	5000 mm extended length, 500 mm diameter	10,000 mm extended length, 600 mm diameter
Weight	1,200 kg (empty)	2,000 kg (empty)
Max Cylinder Weight	600 kg	15 q(OCR unclear)
Pneumatic Feeding System Pressure	6 / 9 bar	8 / 10 bar
Internal Tank Capacity	200 litres	500 litres
Max Fluid Temperature	50 degrees	50 degrees

This ISO 1000:2020-compliant automated cylinder tester is designed for safe, accurate hydraulic cylinder testing and flushing.
