Helmholz - PROFIBUS Connector Get latest price

General information

• Order number700-972-0BB50

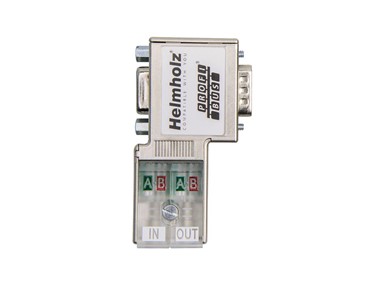

• Article namePROFIBUS connector, 90 °, EasyConnect®, with PG
• Scope of deliveryPROFIBUS connector, installation instructions
• Dimensions (DxWxH)40 x 17 x 72 mm
• WeightApprox. 40 g
• Cable outletVertical cable outlet, suitable for FastConnect stripping tool
• Terminating resistorResistor combination integrated and switchable using slide switch
• PG connection socketYes
• PROFIBUS bus cableFC standard cable, solid or flexible, 0.64 mm Ø, 60/75 °C copper cable
• Connector typeEasyConnect®
• Maximum outside diameter8.0 mm
• Voltage supply+4.75 … +5.25 V DC (must come from the device)
• Current drawMax. 12.5 mA

PROFIBUS interface

• Number1
• Transmission ratemax. 12 Mbps
• ConnectionSUB-D connector, 9-pin
• ConnectionSUB-D connector, 9-pin

Ambient conditions

• Ambient temperature-25 °C … +85 °C( The maximum ambient temperature for UL is +60 °C.)
• Transport and storage temperature-25 °C … +85 °C
• Relative air humidity70 % at +25 °C
• Pollution degree2
• Protection ratingIP20
• ApprovalsCE, UL
