FLEXtra SLIM Ethernet Switch - 5, 8 ports

Upgrade your network with the FLEXtra SLIM Ethernet Switch by Helmholz. Available in 5 or 8 ports, it ensures seamless connectivity, space-saving design, and reliable performance for all your devices. Perfect for any environment!

Receive 1-2 weeks from order

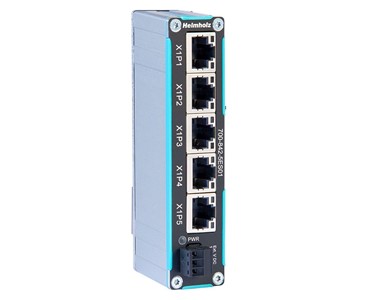

FLEXtra SLIM Ethernet-Switch, unmanaged 5x RJ45 100 Mbit

The switch is suitable for DIN rail mounting and is very easy to integrate into your network. Once plugged in, it is immediately ready for operation thanks to the simple plug & play installation. No configuration is necessary.

The 5-port unmanaged Ethernet switch is suitable for PROFINET networks. The LLPD (neighbourhood detection) and PTCP (time synchronisation) functions are handled correctly with the switch in accordance with the PROFINET standard. The unmanaged Ethernet switch therefore complies with PROFINET Conformance Class A. Connect up to 5 Ethernet devices at 10 or 100 Mbit/s.

Store-and-Forward architecture
10Base-T/100Base-TX
Full-/Half-Duplex
Autonegotiation
Auto MDI/MDI-X (IEEE 802.3u Auto crossover support)
LLDP & PTCP Delay-Traffic blocking (for PROFINET networks)
PROFINET Conformance Class A
QoS-Priority-Queues: 2 per port
1K MAC address lookup table
448K bit packet buffering
max forwarding packet length 1552 bytes
FLEXtra SLIM Ethernet-Switch, unmanaged 5x RJ45 100 Mbit
General information

To contact Ti2 Pty Ltd about Helmholz FLEXtra SLIM Ethernet Switch - 5, 8 ports use Get a quote.

FLEXtra SLIM Ethernet-Switch, unmanaged 5x RJ45 100 Mbit

Store-and-Forward architecture
10Base-T/100Base-TX
Full-/Half-Duplex
Autonegotiation
Auto MDI/MDI-X (IEEE 802.3u Auto crossover support)
LLDP & PTCP Delay-Traffic blocking (for PROFINET networks)
PROFINET Conformance Class A
QoS-Priority-Queues: 2 per port
1K MAC address lookup table
448K bit packet buffering
max forwarding packet length 1552 bytes
FLEXtra SLIM Ethernet-Switch, unmanaged 5x RJ45 100 Mbit
General information

Read less...

To contact Ti2 Pty Ltd about Helmholz FLEXtra SLIM Ethernet Switch - 5, 8 ports use Get a quote.

700-842-5ES01-Manual-EN-V2(0.13MB)
