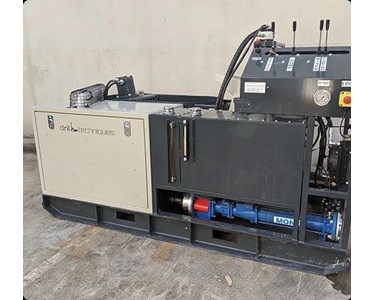

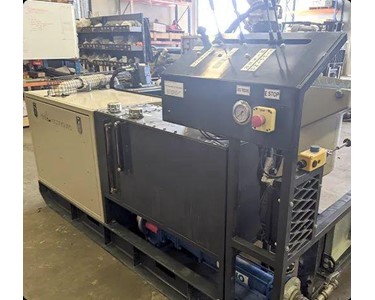

Grouting & Mixing Plant Machine 17 kW | GM-1M Get latest price

With a robust hydraulic system, user-friendly controls, and optional data acquisition for real-time performance tracking, it’s built to meet the demanding needs of civil and geotechnical contractors. Engineered for simplicity, reliability, and portability, this plant is ideal for efficient on-site operation.

Specifications:

• 1–1.5 m³/h maximum mixing capacity (with water/cement ratio = 1:1)
• Mixing tank capacity: 150 litres (Turbo mix pump, open impeller type, 700 l/min max. delivery @ 1 Bar, hydraulically driven)

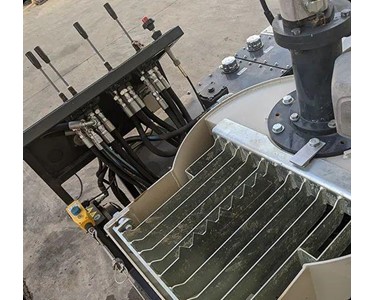

• Includes bag breaker and hopper mounted on the side of the mixing tank
• Max flow rate 100 l/min, max pressure 12.0 bar
• Sound abated hydraulic power pack – DIESEL 17 kW
• Approximate weight: 1,300 kg

To contact Drilltechniques about Grouting & Mixing Plant Machine 17 kW | GM-1M use Get a quote.

With a robust hydraulic system, user-friendly controls, and optional data acquisition for real-time performance tracking, it’s built to meet the demanding needs of civil and geotechnical contractors. Engineered for simplicity, reliability, and portability, this plant is ideal for efficient on-site operation.

Specifications:

• 1–1.5 m³/h maximum mixing capacity (with water/cement ratio = 1:1)
• Mixing tank capacity: 150 litres (Turbo mix pump, open impeller type, 700 l/min max. delivery @ 1 Bar, hydraulically driven)
• Includes bag breaker and hopper mounted on the side of the mixing tank
• Max flow rate 100 l/min, max pressure 12.0 bar
• Sound abated hydraulic power pack – DIESEL 17 kW
• Approximate weight: 1,300 kg
