FAE Skid Steer Road Planner 60 to 135 hp ...

FAE - Skid Steer Road Planner 60 to 135 hp | RPL/SSL

Supplier: Semco Equipment Sales

Skid Steer Road Planner 60 to 135 hp | RPL/SSL

60 to 135 hp Skid Steer Road Planner

Receive 1-3 days from order

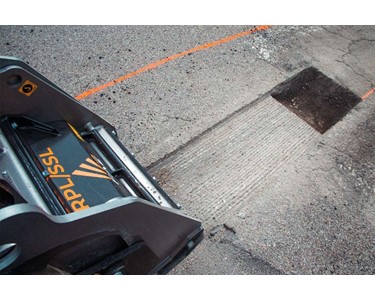

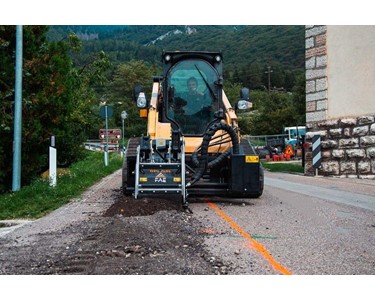

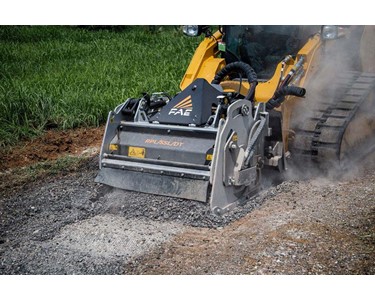

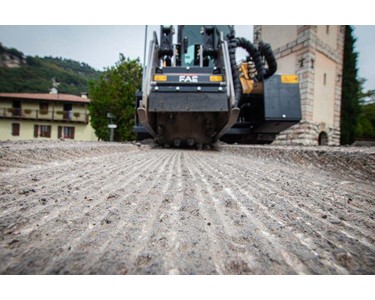

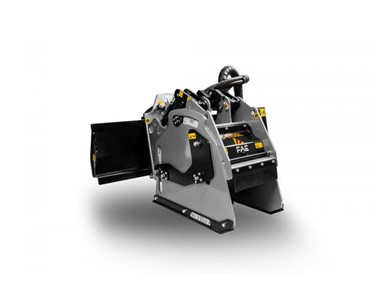

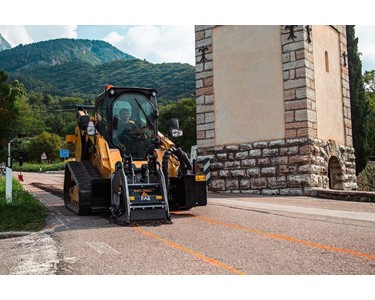

The RPL/SSL is a road planer for 60 to 135 hp skid steers which is capable of milling down to a depth of 17 cm. The dual transmission version is compatible with 90- to 135-hp skid steer loaders to mill up to 14 cm deep. The RPL/SSL line is ideal for road preparation before adding a new layer of asphalt or concrete, or to simplify excavation operations. Self-leveling skids and tilt ensure optimal results. Operational precision is ensured by the hydraulic drive system — which makes it possible to work right up against a wall on the right or left side — as well as practical depth and cutting indicators. The line is completed with special teeth designed specifically for asphalt and concrete road surfaces.

Key Features

60 to 135 hp
17cm Workding Depth

MODEL	RPL/SSL-45	RPL/SSL-60	RPL/SSL-75	RPL/SSL/DT100	RPL/SSL/DT125	RPL/SSL/DT150
Engine (hp	60-110	60-110	90-135	90-135	90-135	90-135
Requirements Flow (L/min)	100-155	100-155	120-170	120-200	120-200	120-200
Pressure (bar)	180-350	180-350	180-350	180-350	180-350	180-350
Working width (mm)	450	600	750	1000	1250	1500
Total width (mm)	1650	1650	1650	1650	1650	1650
Weight (kg)	900	950	1000	1150	1250	1350
Working depth (mm)	0-170	0-170	0-170	0-140	0-140	0-140
Rotor diameter (mm)	600	600	600	600	600	600
Tilting angle ±	8°	8°	8°	± 8°	± 8°	± 8°
Side shifting (mm)	560	560	560	560	560	560
N° picks type R	42	54	60	78	96	114

To contact Semco Equipment Sales about FAE Skid Steer Road Planner 60 to 135 hp | RPL/SSL use Get a quote.
