Enerpat Heavy-Duty Hydraulic One Shaft ...

Enerpat - Heavy-Duty Hydraulic One Shaft Shredder

Supplier: Enerpat Group

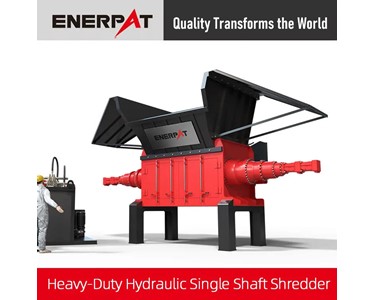

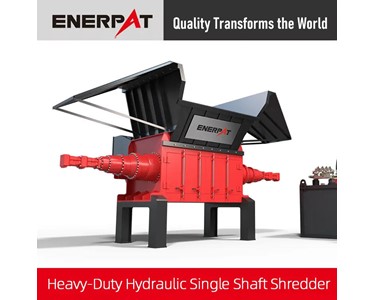

Heavy-Duty Hydraulic One Shaft Shredder

The Heavy-Duty Hydraulic One Shaft Shredder is a powerful and efficient solution for processing bulky metal waste and scrap, engineered for demanding recycling and waste management applications.

Video for Enerpat Heavy-Duty Hydraulic One Shaft Shredder

Powerful hydraulic system enables efficient shredding of bulky metal waste.

Key Features & Benefits

High-efficiency shredding with a robust hydraulic system delivers controlled power for effective reduction of bulky metal waste.
Modular construction with a welded tenon-and-mortise plate structure offers easy maintenance and long service life.
Safety first: Overload protection system automatically relieves pressure to prevent equipment damage and enhance operator safety.
Certified quality ensures reliability and performance for industrial use.

Applications

Shredding large aluminium can bundles and industrial scrap aluminium including broken profiles or castings.
Ideal for recycling facilities, metal yards, automotive parts processing, and waste management operations.

Technical Specifications

Model	MSA-H2000	MSA-H3000
Motor Power (kW)	250–315	355
Effective Rotor Length (mm)	2000	3000
Rotor Diameter (mm)	700	900
Blade Dimensions (mm)	120 × 120	150 × 150
Drive System	Hydraulic	Hydraulic

Construction & Core Advantages

Durability & Easy Maintenance: Sturdy modular design simplifies assembly and maintenance while ensuring long-term reliability.
High-Performance Knife Shaft: Made from Baosteel 42CrMo, featuring a V-shaped, densely packed blade structure increasing the crushing rate by 50%.
Efficient Feeding System: Copper-guided hydraulic push box ensures steady, jam-free material feeding and precise extrusion.
Dual-Speed Feeding Control: Automatically adjusts feeding speed for consistent operation, optimising throughput.
Powerful Hydraulic Drive: High torque, low speed output with automatic overload protection and pressure relief functionality.
Smart Control System: Siemens/Schneider PLC controls provide user-friendly operation, automatic knife reversal, and safety shutoff functions.

Operation Principles

Material Pushing: Hydraulic pusher arm feeds material to the cutter blades.
Material Shredding: Shearing action from rotating and stationary blades processes materials.
Screen Discharge: Shredded material is discharged via screen; output particle size is determined by screen choice.

Performance Highlights

High processing capability and throughput for large volumes with minimal downtime.
Power efficient operation for lower energy consumption without compromising performance.
Adjustable shredding precision for meeting recycling or sorting specifications.

To contact Enerpat Group about Enerpat Heavy-Duty Hydraulic One Shaft Shredder use Get a quote.

Key Features & Benefits

High-efficiency shredding with a robust hydraulic system delivers controlled power for effective reduction of bulky metal waste.
Modular construction with a welded tenon-and-mortise plate structure offers easy maintenance and long service life.
Safety first: Overload protection system automatically relieves pressure to prevent equipment damage and enhance operator safety.
Certified quality ensures reliability and performance for industrial use.

Applications

Shredding large aluminium can bundles and industrial scrap aluminium including broken profiles or castings.
Ideal for recycling facilities, metal yards, automotive parts processing, and waste management operations.

Technical Specifications

Model	MSA-H2000	MSA-H3000
Motor Power (kW)	250–315	355
Effective Rotor Length (mm)	2000	3000
Rotor Diameter (mm)	700	900
Blade Dimensions (mm)	120 × 120	150 × 150
Drive System	Hydraulic	Hydraulic

Construction & Core Advantages

Durability & Easy Maintenance: Sturdy modular design simplifies assembly and maintenance while ensuring long-term reliability.
High-Performance Knife Shaft: Made from Baosteel 42CrMo, featuring a V-shaped, densely packed blade structure increasing the crushing rate by 50%.
Efficient Feeding System: Copper-guided hydraulic push box ensures steady, jam-free material feeding and precise extrusion.
Dual-Speed Feeding Control: Automatically adjusts feeding speed for consistent operation, optimising throughput.
Powerful Hydraulic Drive: High torque, low speed output with automatic overload protection and pressure relief functionality.
Smart Control System: Siemens/Schneider PLC controls provide user-friendly operation, automatic knife reversal, and safety shutoff functions.

Operation Principles

Material Pushing: Hydraulic pusher arm feeds material to the cutter blades.
Material Shredding: Shearing action from rotating and stationary blades processes materials.
Screen Discharge: Shredded material is discharged via screen; output particle size is determined by screen choice.

Performance Highlights

High processing capability and throughput for large volumes with minimal downtime.
Power efficient operation for lower energy consumption without compromising performance.
Adjustable shredding precision for meeting recycling or sorting specifications.

Read less...

To contact Enerpat Group about Enerpat Heavy-Duty Hydraulic One Shaft Shredder use Get a quote.
