Elite Robots - Collaborative Robot Arm CS66 Get latest price

Read more...

To contact Elite Oceania Pty Ltd about Elite Robots Collaborative Robot Arm CS66 use Get a quote.

• Applications for this product
• Features of this product
• Why choose this product (ie the benefits)
• Specifications of this product

Applications for this product:

1. Food processing

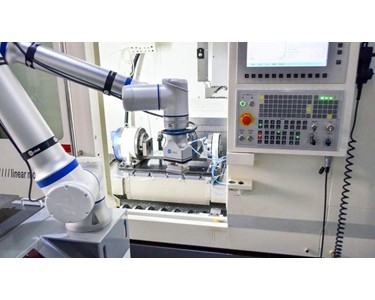

2. Machine Tending

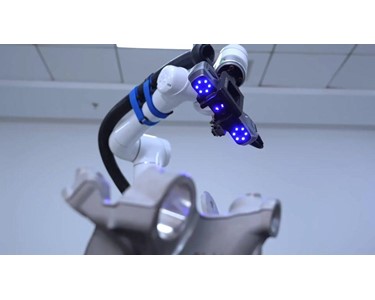

3. Quality inspection

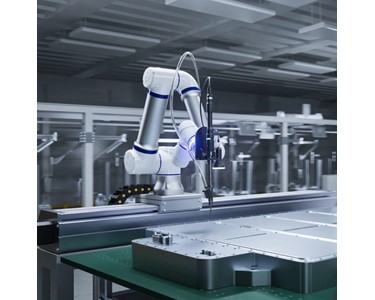

4. Pick and place for light to mid-weight items

5. Screwing

6. Material handling and tending

7. Education, training and research

Features of this product:

• Fast paced quality cobot that carries up to 6kg and reaches over 900mm
• Software and updates are part of the product - so no additional software required
• Easy programming and integration

Why choose this product?

• Great backup service, warranty and spare parts held in Australia
• We keep your robots running

Specifications of this product:

• Payload – 6kg
• Radius – 914mm
• Repeatability – ±0.03mm
• Axis – 6
• IP rating – IP65 (optional IP68)
• Temperature range – -10~50°C
• Relative humidity – <90% (non-condensing)
• Typical power usage – 250W
• Tool I/O connector – M8, 8pin
• Tool I/O ports – 4 config. DI, 4 config. DO; 1 AI, 1 AO
• Tool I/O power supply – 0 / 12V / 24V, 3A, 2A, 1A
• Tool I/O communication – RS485, Modbus RTU
• Footprint – Ø 150 mm
• Weight – 20 kg

What’s in the Box:

CS66

Elite Robots CS66 robotic arm (20kg weight; 985mm total cobot length; Ø150mm footprint). Standard IP65, upgradeable to IP68. Includes standard 5.5m cable (optional cable lengths are also available: 1.5m; 3m; 8m; 10m).

Controller

Delivered with the standard compact AC controller (505 x 462 x 257mm; 14kg) for seamless operation management. The AC/DC OEM controller (495 x 200 x 170mm; 7.1kg) is available as an optional upgrade.

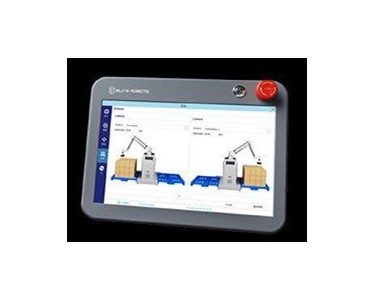

Teach Pendant

Includes the standard IP54-rated ERP400 teach pendant with a 12.1" full-touch screen and 5.5m cable. For enhanced safety, the ERP400S teach pendant with 3-mode enable key is available as an option

Read less...
