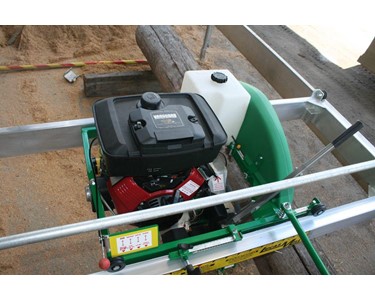

Circular Swing-blade Saw Mills 16 H/P | ...
Perfect for the owner builder, cabinet maker or hobbyist wood-worker.
Specifications:
ENGINE |
16H/P manual start, V-twin, petrol |
TRANSMISSION |
4” centrifugal clutch, 3 SPA875 belts 25mm shafts 1 piece hub shaft assembly |
SAWBLADES |
5 tooth TCT 2.8mm plate, 5mm kerf |
CUT LENGTH |
Up to 5m in standard form |
CUT SIZES |
Up to 160mm x 160mm (6¼” x 6¼”) Double cut up to 160mm x 320mm (6¼” x 12½”) |
SIDE-WINDER |
Optional
|
WEIGHTS | |
CARRIAGE |
118kg
|
TRACKS |
66kg
|
END-FRAMES |
76kg
|
SHIPPING WEIGHT |
316kg
|
SHIPPING SIZES |
Box: .87m x .75m x 2.8m Tracks: .3m x .2m x 6.1m |
SLABBER |
Optional
|
To contact Lucas Mill about Circular Swing-blade Saw Mills 16 H/P | Model 6-16 use Get a quote.
Perfect for the owner builder, cabinet maker or hobbyist wood-worker.
Specifications:
ENGINE |
16H/P manual start, V-twin, petrol |
TRANSMISSION |
4” centrifugal clutch, 3 SPA875 belts 25mm shafts 1 piece hub shaft assembly |
SAWBLADES |
5 tooth TCT 2.8mm plate, 5mm kerf |
CUT LENGTH |
Up to 5m in standard form |
CUT SIZES |
Up to 160mm x 160mm (6¼” x 6¼”) Double cut up to 160mm x 320mm (6¼” x 12½”) |
SIDE-WINDER |
Optional
|
WEIGHTS | |
CARRIAGE |
118kg
|
TRACKS |
66kg
|
END-FRAMES |
76kg
|
SHIPPING WEIGHT |
316kg
|
SHIPPING SIZES |
Box: .87m x .75m x 2.8m Tracks: .3m x .2m x 6.1m |
SLABBER |
Optional
|
To contact Lucas Mill about Circular Swing-blade Saw Mills 16 H/P | Model 6-16 use Get a quote.
