Big Joe - Electric Pallet Stacker 1800kg Capacity | PDS40 Get latest price

Read more...

To contact Spot On Warehouse Solutions about Big Joe Electric Pallet Stacker 1800kg Capacity | PDS40 use Get a quote.

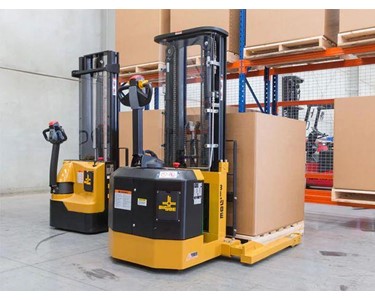

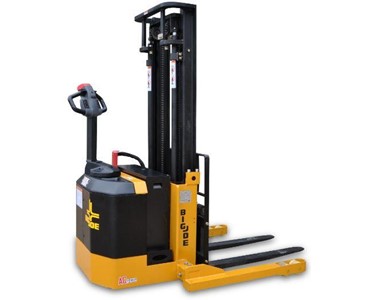

Introducing the PDS40 heavy-duty electric pallet stacker from Big Joe Forklift, a powerful solution designed to handle your toughest material handling tasks with ease. Features

• High Capacity and Versatility: The PDS40 offers a robust 1.8-tonne capacity and straddle outriggers, ensuring seamless handling of heavy loads and accommodating different pallet sizes.
• Triplex Mast for High Reach: With a triplex mast, the PDS40 can lift up to 4.5 metres, making it ideal for high-reaching tasks, while its lowered height of just over 2 metres allows easy entry into standard shipping containers.
• Efficient ZAPI AC Drive System: The stacker is powered by a reliable ZAPI AC drive system, delivering efficient performance and optimal handling.
• Central Vertical Shaft Drive-Wheel: The PDS40 features a steered drive-wheel mounted on a central vertical shaft, reducing wear and maintenance requirements, ensuring longevity and durability.
• Long Tiller with Dual-Hand Controls: The stacker is equipped with a long tiller, featuring ergonomic dual-hand controls for comfortable and precise operation.
• Comprehensive Safety Features: Safety is a priority with the PDS40, offering an e-stop button, automatic anti-rollback brakes for ramp safety, and a hydraulic hose-burst valve for added operator and equipment protection.
• Low-Speed Mode: The stacker automatically switches to low-speed mode when the forks are raised above 500mm, ensuring stability and control during elevated handling.

Applications

Designed to excel in heavy-duty applications, the PDS40 electric pallet stacker is a reliable and powerful solution for your material handling needs. Experience the efficiency and versatility of the PDS40 from Big Joe Forklift and witness a seamless transformation in your material handling operations.

Technical Specifications

Capacity (kg):

• 1800kg

Load Centre Distance (mm):

• 600 mm

Max Height (mm):

• 5500 mm

Battery Voltage/Normal Capacity:

• 24V/205Ah

Battery Onboard:

• Lithium 205ah battery with external charger

Travel Speed: (km/h)

• 5.0/4.5 kph

Drive Control:

• AC

Type:

• Electric Pallet Stacker
