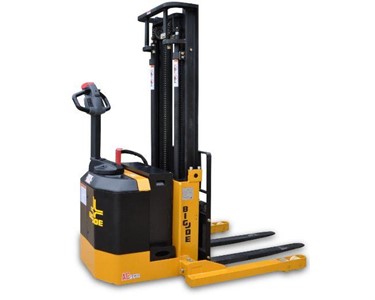

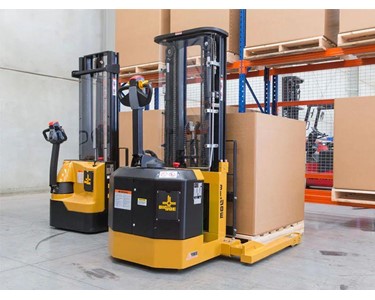

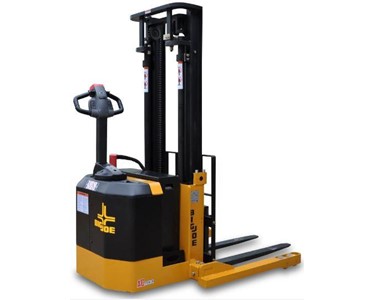

Introducing the PDS30 heavy-duty electric pallet stacker from Big Joe Forklifts, designed to handle tough and high-reach pallet handling needs with ease. With a robust 1.5-tonne capacity and a 4.5-metre triplex mast, the PDS30 is perfectly suited for heavy-duty logistics operations. Its straddle legs are ideal for accommodating pallets, making it a versatile solution for various material handling tasks.

Features

• High Reach and Capacity: The PDS30 boasts a 4.5-metre triplex mast and a hefty 1.5-tonne capacity, ensuring efficient and seamless handling of heavy loads in demanding environments.
• Central Drive Wheel: With a central drive wheel, the stacker easily traverses uneven ground, enhancing manoeuvrability and control during material handling.
• Lowered Height for Container Handling: With a lowered height of just over two metres, the PDS30 is well-suited for devanning shipping containers, streamlining your logistics processes.
• Industry-Standard ZAPI AC Drive System: Equipped with an industry-standard ZAPI AC drive system, the PDS30 delivers reliable and efficient performance for your heavy-duty needs.
• Ergonomic Tiller Head with Dual-Hand Controls: The stacker's ergonomic tiller head features dual-hand controls with progressive drive levers, providing accurate and intuitive operation.
• Comprehensive Safety Features: Safety is a priority with the PDS30, offering an e-stop button, automatic anti-rollback brakes, and a hydraulic hose-burst valve for added operator and equipment protection.
• Low-Speed Mode: The stacker automatically switches to low-speed mode when the forks are raised above 500mm, ensuring stability during elevated handling.

Applications

Tough and versatile, the PDS30 is the smart solution for heavy-duty, high-reach pallet handling needs. You can rely on the PDS30 for consistent performance in your demanding logistics operations.

Technical Specifications

Capacity (kg):

• 1500kg

Load Centre Distance (mm):

• 500 mm

Max Height (mm):

• 5000 mm

Battery Voltage/Normal Capacity:

• 24V/205Ah

Battery Onboard:

• Lithium 205ah battery with external charger

Travel Speed: (km/h)

• 6.0/5.5 kph

Drive Control:

• AC

Type:

• Electric Pallet Stacker
