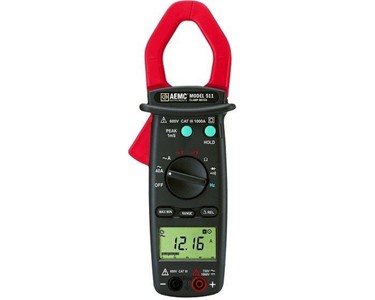

AEMC - Multifunction 1000 Amp Digital Clamp Meter | 511

Supplier: Testrix

Multifunction 1000 Amp Digital Clamp Meter | 511

The Clamp-On Meter Model 511 is a general purpose professional clamp-on meter that measures up to the toughest standards.

Receive 1-3 days from order

It is built into a rugged mechanical case and is designed using quality polycarbonate materials. This meter offers a complete set of measurement ranges and is in compliance with international safety and quality standards to ensure a professional and reliable measuring tool. The Model 511 is auto-ranging and provides the best measurement range and resolution for troubleshooting. It has a high resolution 40A range.

The Model 511 measures AC Amps, AC Volts, DC Volts, Ohms, Continuity (with beeper), Frequency (from V or A) and has a Diode Test function.

The Model 511 is sized for a comfortable, one-handed operation. This model is average sensing and designed for traditional average responding electrical systems. The jaw opening for the Model 511 is 1.575" (40mm).

Features:

Standard size, full function clamp-on meter
1000AAC current measurements
750VAC/1000VDC volt measurements
Resistance measurement to 4000Ω
Continuity with beeper below 40Ω
Frequency measurements from V and A
Diode test
1ms Peak function for fast capture of signals
Hold function to "freeze" readings
Push-button for easy ADC zeroing
Large easy-to-read 4000-count display
42-segment analog bargraph

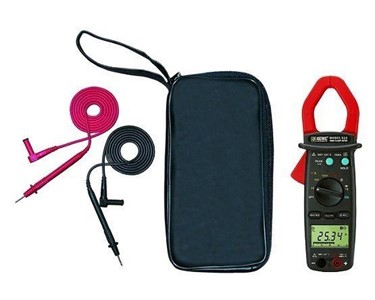

Includes test leads and soft carrying pouch

Applications:

Commercial, industrial, residential and HVAC troubleshooting
Power panel, junction box and battery bank monitoring
AC or DC motor testing
Power plant troubleshooting
Electrical testing and troubleshooting on traditional loads

To contact Testrix about AEMC Multifunction 1000 Amp Digital Clamp Meter | 511 use Get a quote.

The Model 511 measures AC Amps, AC Volts, DC Volts, Ohms, Continuity (with beeper), Frequency (from V or A) and has a Diode Test function.

Features:

Standard size, full function clamp-on meter
1000AAC current measurements
750VAC/1000VDC volt measurements
Resistance measurement to 4000Ω
Continuity with beeper below 40Ω
Frequency measurements from V and A
Diode test
1ms Peak function for fast capture of signals
Hold function to "freeze" readings
Push-button for easy ADC zeroing
Large easy-to-read 4000-count display
42-segment analog bargraph
Includes test leads and soft carrying pouch

Applications:

Commercial, industrial, residential and HVAC troubleshooting
Power panel, junction box and battery bank monitoring
AC or DC motor testing
Power plant troubleshooting
Electrical testing and troubleshooting on traditional loads

Read less...

To contact Testrix about AEMC Multifunction 1000 Amp Digital Clamp Meter | 511 use Get a quote.
