AEMC - Digital Clamp Meter with Inrush Function - AC/DC 1000A True RMS | 514 Get latest price

Read more...

To contact Testrix about AEMC Digital Clamp Meter with Inrush Function - AC/DC 1000A True RMS | 514 use Get a quote.

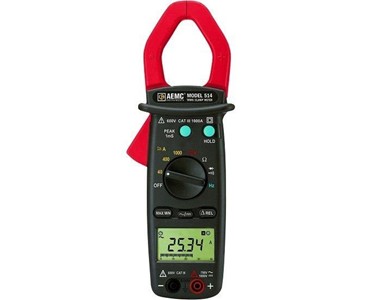

It is built into a rugged mechanical case and is designed using quality polycarbonate materials. This meter offers a complete set of measurement ranges and is in compliance with international safety and quality standards to ensure a professional and reliable measuring tool. The Model 514 is auto-ranging and provides the best measurement range and resolution for troubleshooting. It has a high resolution 40A range.

The Model 514 measures AC Amps, AC Volts, DC Volts, Ohms, Continuity (with beeper), Frequency (from V or A) and has a Diode Test function. The Model 514 also uses Hall sensor technology that provides both DC and AC current measurements to 1000A.

The Model 514 is sized for a comfortable, one-handed operation. This model is True RMS sensing responding to distorted signal electrical systems. The jaw opening for the Model 514 is 1.575" (40mm).

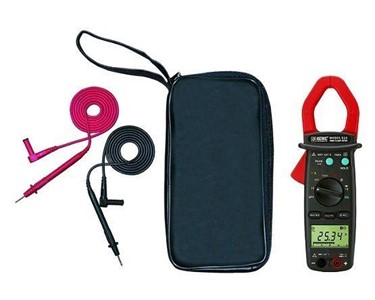

Includes test leads and soft carry case.

Features:

• Standard size, full function clamp-on meter
• 1000AAC/DC current measurements
• 750VAC/1000VDC volt measurements
• TRMS measurements
• Resistance measurement to 4000 Ohms
• Continuity with beeper below 40 Ohms
• Frequency measurements from V and A
• Diode test
• 1ms Peak function for fast capture of signals
• Hold function to "freeze" readings
• Push-button for easy ADC zeroing
• Large easy-to-read 4000-count display
• 42-segment analog bargraph

Applications:

• Commercial, industrial, residential and HVAC troubleshooting
• Power panel, junction box and battery bank monitoring
• AC or DC motor testing
• Power plant troubleshooting
• Electrical testing and troubleshooting on non-linear loads, such as adjustable speed drives and computers

Read less...
