1080P Full HD Pipe Inspection Camera System | 60 Metre Get latest price

Read more...

To contact Testrix about 1080P Full HD Pipe Inspection Camera System | 60 Metre use Get a quote.

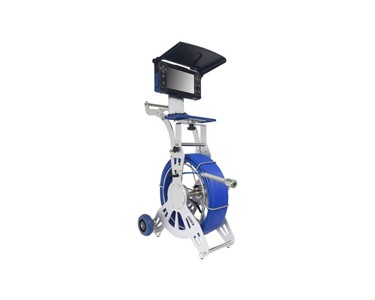

The Testrix TX-60HD Full HD Sewer and Drain Camera System is designed for professionals who demand precision and reliability in inspecting sewer lines and drainage systems. Equipped with cutting-edge technology, this camera system offers unparalleled visibility and control, making it an essential tool for maintenance and diagnostics of plumbing issues. A new state-of-the-art Full HD (1080P) colour camera with a 105-degree field of view, provides crystal clear imaging and detailed inspection capabilities in various lighting conditions. The camera is manufctured from industrial grade stainless steel and aluminium alloy and is IP68 waterproof.

Based around an all-new cable reel, the Testrix TX-60HD is wound with 60 metres of camera cable, made from a reinforced fibreglass, coated in the latest waterproof PVC for the highest level of protection. The signal cable consists of a multicore, twisted pair arrangement of coaxial cable, which is also shielded to prevent electrical interference from nearby power cables. With a diameter of 7.6mm the cable combines thickness and flexibility to ensure that the attached camera is able to traverse over longer distances. A distance counter offers an on screen display of the distance covered by the camera with a resolution of 0.1 metres, and an accuracy of as little as +/-1%.

Our camera head is manufactured from the latest industrial grade materials and has a hardened sapphire glass lens cover for industrial grade strength, with reduced weight of only 480 grams, and is rated at IP68, making it waterproof and allowing it to enter pipes, ducts, cavities and voids which may be submerged. A built in 512Hz transmitting sonde allows the depth and location of the camera to be pinpointed from above the ground with either our own locator, a Radiodetection locator, or any other locator which supports a 512Hz sonde frequency. The camera system is also supplied with skids, which help to keep the camera away from the bottom of the pipe, and aid in easier pushing.

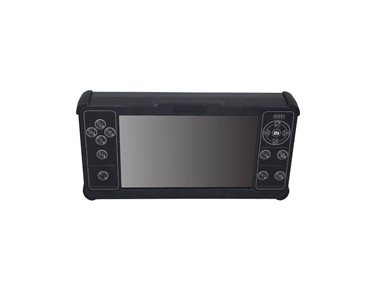

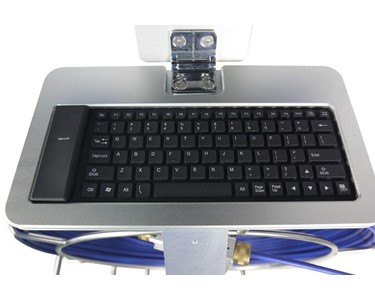

The control unit, encompasses a 10.1 inch LCD high brightness colour flat screen, which makes viewing easier in brighter sunlight. All functions for the TX60-PT are set into the control unit, with both touch pad buttons, which can also control the camera's digital zoom, up to 8x for inspecting smaller details. The control unit weighs just 2.6kgs and is easily mounted to the custom bracket on the top of the cable reel. A keyboard shelf is also set into the reel, with a recess to fit the waterproof keyboard and keep it secure. On screen display of real time video, text notes, and distance are all available, with the ability to save both video and still images to a SD card, although our system will also support USB, up to 256GB. A latest generation rechargeable polymer lithium battery with an extended capacity of 6,000mAh can power the whole system for around 4 hours.

Key Features:

• Full HD 1080P 38mm Camera Head
• Wide angle 105 degree field of view
• 8x digital zoom pinpoints problems in larger pipes & voids
• 60 metres of industrial grade waterproof cable 7.6mm in diameter
• Upgraded aluminium alloy & stainless steel industrial grade materials
• On screen distance counter
• Built in 512Hz transmitting sonde allows pinpointing location and depth from above ground
• Camera head is made from aluminium alloy for reduced weight and hardened sapphire glass lens cover
• IP68 waterproof rating allows for use in submerged areas
• Built in 12 ultra bright LED lights for illumination in dark pipes
• Save HD videos and images to SD card or USB
• Latest generation control unit with 10.1 inch colour TFT flat panel
• Waterproof touchpad buttons
• Keyboard allows user to enter text notes on screen
• Upgraded 6,000mAh rechargeable lithium polymer battery provides up to 4 hours per charge
• Australia wide support and service with full range of parts in stock
• We can supply this camera system with an additional 25mm self-levelling camera head which will allow the user to deploy this system into smaller pipes, at an additional cost.
