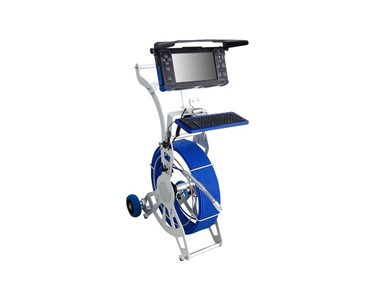

The Testrix Bluebird MIDI-60HD offers a truly versatile camera sysytem for in-depth inspections of drains, sewer pipes, storm water pipes and tunnels. The 28mm diameter FULL HD pan and tilt colour camera head is an industry leader in terms of it's compact size, whilst still maintaining full HD (1920 x 1080P) colour video and still images from such a small unit. Never before has a pan and tilt camera head been suitable for inspections of smaller pipes. For increased versatility, the camera head is fully and easily interchangeable with a 25mm or 38mm self-levlling straight view head for inspections of a wider range of pipe sizes, where an unrivalled level of detail is required.

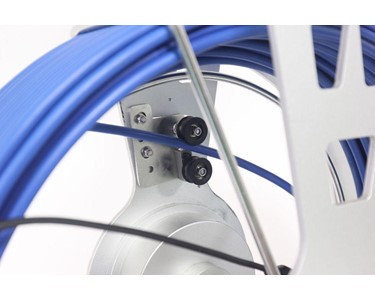

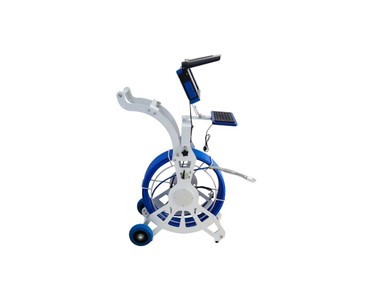

The cable reel has been fully upgraded, manufactured from industrial grade aluminium alloy and stainless steel, the Testrix MIDI-60HD is wound with 60 metres of camera cable, made from a reinforced fibreglass, coated in the latest waterproof PVC for the highest level of protection. The signal cable consists of a multicore, twisted pair arrangement of coaxial cable, which is also shielded to prevent electrical interference from nearby power cables. With a diameter of 7.6mm the cable is designed to maintain flexibility and ditance to ensure that the attached camera is able to traverse over longer distances. A distance counter offers an on screen display of the distance covered by the camera with a resolution of 0.1 metres, and an accuracy of as little as +/-1%.

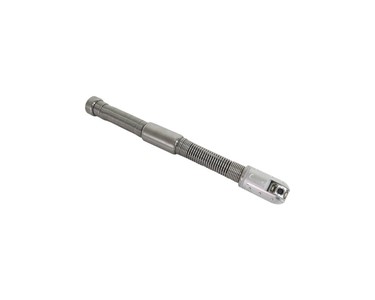

The Testrix pan and tilt camera used on this system is the compact 28mm diameter head and utilises the latest Sony CMOS full HD sensor for the best quality full HD videos and images possible. This camera is manufactured from aluminium alloy with a hardened sapphire glass lens cover for industrial grade strength, with reduced weight, and is rated at IP68, making it waterproof and allowing it to enter pipes, ducts, cavities and voids which may be submerged. This is also a manual focus camera, which can focus in on defects and small details, and 8 levels of zoom complement the manual focus for unrivalled control of the video and images. The operator is able to perform pan and tilt functions (360 degrees horizontal and 180 degrees vertical) as well as lighting adjustment from the control unit, which can be mounted on the reel. A built in 512Hz transmitting sonde allows the depth and location of the camera to be pinpointed from above the ground with a suitable locator, a Radiodetection locator, or indeed any locator which supports a 512Hz sonde frequency. The Bluebird MIDI-60 is also supplied with skids, which help to keep the camera away from the bottom of the pipe, and aid in easier pushing.

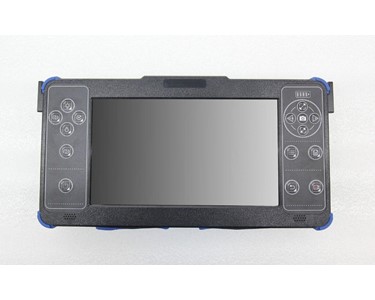

A new design has been adopted for the control unit, encompassing a 10.1 inch LCD high brightness colour flat screen, which makes viewing easier in brighter sunlight. All functions for the Bluebird MIDI are set into the control unit, with touch pad buttons. The control unit weighs just 2.6kgs and is easily mounted to the custom bracket on the top of the cable reel. A full QWERTY keyboard (which is also removable) is set into the reel and on screen display of real time video, text notes, and distance are all available, with the ability to save both video and still images to a SD card, although our system will also support USB, up to 256GB. A latest generation rechargeable polymer lithium battery with an extended capacity of 6,000mAh can power the whole system for around 4 hours.

Key Features:

• Full HD 1080P Compact 28mm Pan and Tilt Camera
• Fully interchangeable camera head (25mm and 38mm self-levelling heads are fully compatible)
• Wide angle 90 degree field of view
• Manual focus & 8x digital zoom pinpoints problems in pipes & voids
• 60 metres of industrial grade waterproof cable 7.6mm in diameter
• Upgraded aluminium alloy & stainless steel reel
• On screen distance counter
• Built in 512Hz transmitting sonde allows pinpointing location and depth from above ground
• Camera head is made from aluminium alloy for reduced weight and hardened sapphire glass lens cover
• IP68 waterproof rating allows for use in submerged areas
• Built in ultra bright LED lights for illumination in dark pipes
• Save HD videos and images to SD card or USB
• Latest generation control unit with 10.1 inch colour TFT flat panel
• Water resistant touchpad buttons
• Keyboard allows user to enter text notes on screen
• Upgraded 6,000mAh rechargeable lithium polymer battery provides up to 4 hours per charge
• Australia wide support and service with full range of parts in stock
