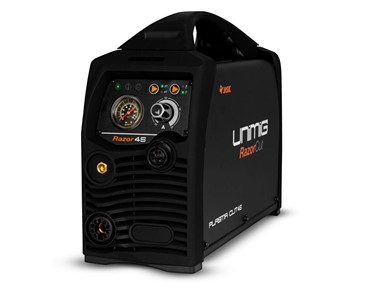

Unimig - Portable Plasma Cutter | Razor Cut 45 – KUPJRRW45 Get latest price

Read more...

To contact Southern Cross Group about Unimig Portable Plasma Cutter | Razor Cut 45 – KUPJRRW45 use Get a quote.

The RAZOR™ CUT 45 is the perfect plasma cutter for the professional who wants a powerful machine with a portable body. Fitted with a 15 AMP plug, this machine is made for the workshop and worksite. The RAZOR™ CUT 45 boasts some serious cutting power with 16mm clean cut and 20mm severance.

MACHINE SPECIFICATIONS

• PRIMARY INPUT VOLTAGE – 240V Single Phase
• SUPPLY PLUG –15 AMP
• RATED INPUT POWER (kVA) – 5.5
• RATED OUTPUT – 98V
• PROTECTION CLASS – IP21S
• INSULATION CLASS – F
• MINIMUM GENERATOR (kVA) – 10.0
• DINSE CONNECTOR – 10/25
• STANDARD – AS/NZ60974-1
• WARRANTY (Years) – 3

SIZE & WEIGHT

• DIMENSIONS (mm) – 410x165x330mm
• WEIGHT (kg) – 9.8kg

PLASMA CUT SPECIFICATIONS

• PLASMA CUT CURRENT RANGE-  20-45A
• PLASMA CUT DUTY CYCLE @ 40°C-  25% @ 45A
• MILD STEEL CUT THICKNESS- 16mm
• MILD STEEL SEVERANCE THICKNESS – 20mm
• ALUMINIUM CUT THICKNESS – 8mm
• ALUMINIUM SEVERANCE THICKNESS – 10mm
• STAINLESS STEEL CUT THICKNESS – 8mm
• STAINLESS STEEL SEVERANCE THICKNESS – 10mm
• AIR FLOW DRAW OFF (L/min) – 189
• AIR FLOW PRESSURE (Bar) – 5.17 (75 psi)
• PLASMA ARC START- Pilot Arc
