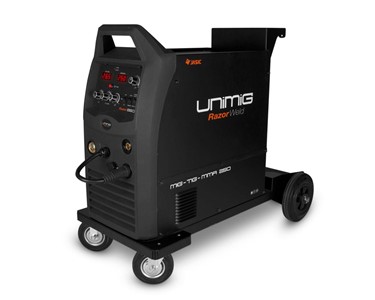

Unimig - Compact Multi-Process Welder | Razor 250 KUMJR250K-SG

Compact Multi-Process Welder | Razor 250 KUMJR250K-SG

The RAZOR™ Compact series is designed for superior performance, offering the highest quality of welds from UNIMIG’s range.

Receive 1-3 days from order

The RAZOR™ 250 Compact is a powerful workshop machine with MIG, TIG and STICK welding functions. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZOR™ 250 Compact is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.

240V Single-Phase
Gas-shielded & Gasless MIG / Lift Arc DC TIG / STICK
Geared Wire Drive
Spool Gun Ready
Push-Pull Gun Ready

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE – 240V Single Phase
SUPPLY PLUG – No plug supplied (32 AMP Recommended)
RATED INPUT POWER (kVA) – 11.8
Ieff (A) – 29.0
RATED OUTPUT – 30A/15.5V – 250A/26.5V
NO LOAD VOLTAGE (V) – 52
PROTECTION CLASS – IP21S
INSULATION CLASS – F
POWER FACTOR – 0.75
MINIMUM GENERATOR (kVA) – 13.0
DINSE CONNECTOR – 35/50
STANDARD – AS/NZ60974-1
SUITABLE MATERIAL – Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
WARRANTY (Years) – 3

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE – 30-250A
MIG DUTY CYCLE @ 40°C – 35% @ 250A
MIG WIRE SIZE RANGE – 0.6-1.0mm
MIG WIRE SPOOL SIZE – 5kg / 15kg
MIG WELDING THICKNESS RANGE – 1-12mm
DRIVE ROLLER SIZE – 30/22 (x2)

TIG SPECIFICATIONS

TIG FUNCTION TYPE – DC Lift Arc
TIG WELDING CURRENT RANGE – 10-220A
TIG DUTY CYCLE @ 40°C – 35% @ 220A
TIG WELDING THICKNESS RANGE – 1-10mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE – 10-220A
STICK DUTY CYCLE @ 40°C – 35% @ 220A
STICK ELECTRODE RANGE – 2.5-4.0mm
STICK WELDING THICKNESS RANGE – 12mm

SIZE & WEIGHT

DIMENSIONS (mm) – 900x400x670mm
WEIGHT (kg) – 58kg

MACHINE FEATURES

WIRE DRIVE – 4 Geared
VRD – Yes
SPOOL GUN CONNECTION – Yes
PUSH / PULL GUN CONNECTION – Yes
BURNBACK ADJUSTMENT – Yes
WIRE INCH – Yes
INDUCTANCE CONTROL – Yes
THERMAL OVERLOAD PROTECTION – Over Temperature Warning

To contact Southern Cross Group about Unimig Compact Multi-Process Welder | Razor 250 KUMJR250K-SG use Get a quote.

240V Single-Phase
Gas-shielded & Gasless MIG / Lift Arc DC TIG / STICK
Geared Wire Drive
Spool Gun Ready
Push-Pull Gun Ready

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE – 240V Single Phase
SUPPLY PLUG – No plug supplied (32 AMP Recommended)
RATED INPUT POWER (kVA) – 11.8
Ieff (A) – 29.0
RATED OUTPUT – 30A/15.5V – 250A/26.5V
NO LOAD VOLTAGE (V) – 52
PROTECTION CLASS – IP21S
INSULATION CLASS – F
POWER FACTOR – 0.75
MINIMUM GENERATOR (kVA) – 13.0
DINSE CONNECTOR – 35/50
STANDARD – AS/NZ60974-1
SUITABLE MATERIAL – Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
WARRANTY (Years) – 3

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE – 30-250A
MIG DUTY CYCLE @ 40°C – 35% @ 250A
MIG WIRE SIZE RANGE – 0.6-1.0mm
MIG WIRE SPOOL SIZE – 5kg / 15kg
MIG WELDING THICKNESS RANGE – 1-12mm
DRIVE ROLLER SIZE – 30/22 (x2)

TIG SPECIFICATIONS

TIG FUNCTION TYPE – DC Lift Arc
TIG WELDING CURRENT RANGE – 10-220A
TIG DUTY CYCLE @ 40°C – 35% @ 220A
TIG WELDING THICKNESS RANGE – 1-10mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE – 10-220A
STICK DUTY CYCLE @ 40°C – 35% @ 220A
STICK ELECTRODE RANGE – 2.5-4.0mm
STICK WELDING THICKNESS RANGE – 12mm

SIZE & WEIGHT

DIMENSIONS (mm) – 900x400x670mm
WEIGHT (kg) – 58kg

MACHINE FEATURES

WIRE DRIVE – 4 Geared
VRD – Yes
SPOOL GUN CONNECTION – Yes
PUSH / PULL GUN CONNECTION – Yes
BURNBACK ADJUSTMENT – Yes
WIRE INCH – Yes
INDUCTANCE CONTROL – Yes
THERMAL OVERLOAD PROTECTION – Over Temperature Warning

Read less...

To contact Southern Cross Group about Unimig Compact Multi-Process Welder | Razor 250 KUMJR250K-SG use Get a quote.
