Unimig - Compact Multi-Process Welder | Viper 185 Mig/Tig/Stick Get latest price

Read more...

To contact Southern Cross Group about Unimig Compact Multi-Process Welder | Viper 185 Mig/Tig/Stick use Get a quote.

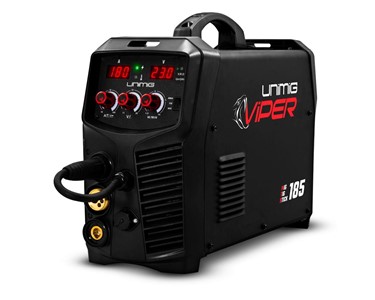

The VIPER™ 185 is the ultimate multi-process welder for the DIY enthusiast. MIG, TIG or STICK, the VIPER™ does it all, and it’s ready to go anywhere you have a standard 10-amp outlet. Get repairs done and see your projects come together in record time with the ability to change modes with the flick of a switch.

MACHINE SPECIFICATIONS

• PRIMARY INPUT VOLTAGE – 240V Single Phase
• SUPPLY PLUG – 10 AMP
• RATED INPUT POWER (kVA) – 7.1
• Ieff (A) – 9.8
• RATED OUTPUT – 30A/15.5V – 180A/23.0V
• NO LOAD VOLTAGE (V) – 62
• PROTECTION CLASS – IP21S
• INSULATION CLASS – F
• POWER FACTOR – 0.7
• MINIMUM GENERATOR (kVA) – 10.0
• DINSE CONNECTOR – 35/50
• STANDARD – AS/NZ60974-1
• SUITABLE MATERIAL – Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
• WARRANTY (Years) – 2

MIG SPECIFICATIONS

• MIG WELDING CURRENT RANGE – 30-180A
• MIG DUTY CYCLE @ 40°C – 10% @ 180A
• MIG WIRE SIZE RANGE – 0.6-0.9mm
• MIG WIRE SPOOL SIZE – 1kg / 5kg
• MIG WELDING THICKNESS RANGE – 1-10mm
• DRIVE ROLLER SIZE – 30/22

TIG SPECIFICATIONS

• TIG FUNCTION TYPE – DC Lift Arc
• TIG WELDING CURRENT RANGE – 10-160A
• TIG DUTY CYCLE @ 40°C – 10% @ 160A
• TIG WELDING THICKNESS RANGE – 1-6mm

STICK SPECIFICATIONS

• STICK WELDING CURRENT RANGE – 10-160A
• STICK DUTY CYCLE @ 40°C – 10% @ 160A
• STICK ELECTRODE RANGE – 2.5-4.0mm
• STICK WELDING THICKNESS RANGE – 2-10mm

SIZE & WEIGHT

• DIMENSIONS (mm) – 553x214x388mm
• WEIGHT (kg) – 12.0kg

MACHINE FEATURES

• WIRE DRIVE – Geared
• VRD – Yes
• SPOOL GUN CONNECTION – Yes
• BURNBACK ADJUSTMENT – Yes
• WIRE INCH – Yes
• THERMAL OVERLOAD PROTECTION – Yes

Read less...
