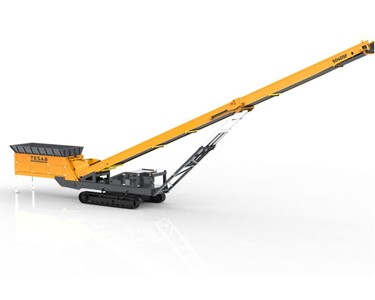

Tesab 5040SF Feeding Stacker

Tesab - 5040SF Feeding Stacker

5040SF Feeding Stacker

The newly designed Tesab 5040SF is the latest offering as a feeder stacker.

Receive 1-3 days from order

It comprises of a 10ft feeder hopper that transfers material onto a 50ft conveyor. Designed to allow operators to stockpile/ transfer material, it eliminates double handling of materials.

The unit can also be compacted for transport into a 40ft high cube container, reducing transport costs.

SPECIFICATIONS

Engine: 74 Hp (55 kW)
Weight: 319,670 lbs (145,000kg)
Hopper Capacity: 6m³ (8 yd³)
Max. Production Rate: 550 TPH (500 metric TPH)
Transport Dimensions:
- Height 2.6m (8′ 5″)
- Width 2.3m (7′ 6″)
- Length 2.6m (8′ 5″)
Working Dimensions:
- Height 6.5m (21′ 3″)
- Length 18.9m (62′ 2″)
- Stockpile Height 6.5m (21′ 3″)

To contact EEA Materials Processing about Tesab 5040SF Feeding Stacker use Get a quote.

It comprises of a 10ft feeder hopper that transfers material onto a 50ft conveyor. Designed to allow operators to stockpile/ transfer material, it eliminates double handling of materials.

The unit can also be compacted for transport into a 40ft high cube container, reducing transport costs.

SPECIFICATIONS

Engine: 74 Hp (55 kW)
Weight: 319,670 lbs (145,000kg)
Hopper Capacity: 6m³ (8 yd³)
Max. Production Rate: 550 TPH (500 metric TPH)
Transport Dimensions:
- Height 2.6m (8′ 5″)
- Width 2.3m (7′ 6″)
- Length 2.6m (8′ 5″)
Working Dimensions:
- Height 6.5m (21′ 3″)
- Length 18.9m (62′ 2″)
- Stockpile Height 6.5m (21′ 3″)
