Nordfab Pty Ltd Nordfab Wet Spray Booth

Nordfab Pty Ltd - Nordfab Wet Spray Booth

Supplier: Nordfab Pty Ltd

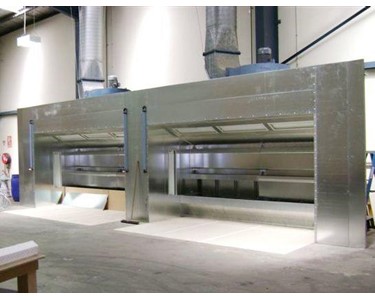

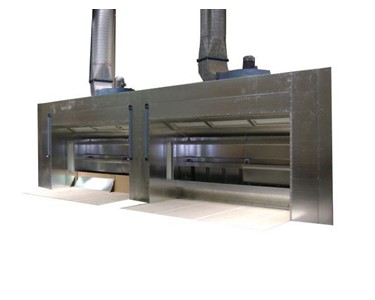

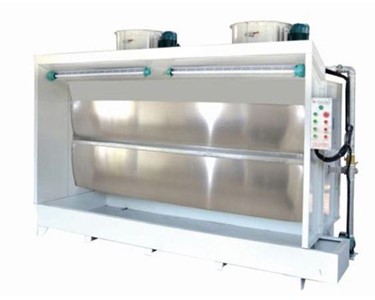

Nordfab Wet Spray Booth

The Nordfab range of Wet Spray booths are constructed from bolt-together modular Galvanised sheet-metal panels, 1-2 mm in thickness.

Video for Nordfab Pty Ltd Nordfab Wet Spray Booth

Compliance with Australian Standards

The Nordfab range of Wet Spray booths is designed with 1 - 2 mm thick powdercoated bolt-together sheet metal panels for easy assembly. These booths feature a water curtain that effectively captures overspray and particulates, pulling them into the water stream for efficient removal.

Recommended industries include, but not limited to:

Industrial coating
Woodwork Finishing

Nordfab Wet Spray Booths are ideal for high-volume spraying or operations using coatings that produce significant overspray, sticky residues, or hazardous particulates, suitable for more demanding applications.

Key Features:

Water Curtain: Captures and removes overspray and particulates.
Durable Filtration System: Components like pumps, filters, and nozzles are made from materials resistant to wear and chemical damage, ensuring long-lasting performance and minimal maintenance.
Explosion-Proof Lighting: Enhances safety when working with flammable paints and solvents. The lighting fixtures are explosion-proof and sealed against moisture and chemical ingress.
Ventilation Ducting: Made from robust materials such as galvanized steel or stainless steel, ensuring efficient removal of fumes and maintaining a clean working environment.
High-Quality Exhaust Fans: Constructed from durable materials to ensure effective air movement and safe expulsion of contaminated air.
Filters: Recirculating water wall.
Designed according to AS4114

Technical Specifications (4 models):

Water Curtain Width (mm): 2,500 / 3,000 / 4,500 / 6,000
Overall Width (mm): 2,800 / 3.300 / 4,800 / 6,300
Overall Height (mm): 2,550 / 2,550 / 2,550 / 2,550
Overall Depth (mm): 2,200 / 2,200 / 2,200 / 2,200
Airflow (L/s): 3,200 / 3,900 / 5,800 / 7,700

To contact Nordfab Pty Ltd about Nordfab Pty Ltd Nordfab Wet Spray Booth use Get a quote.

Recommended industries include, but not limited to:

Industrial coating
Woodwork Finishing

Key Features:

Water Curtain: Captures and removes overspray and particulates.
Durable Filtration System: Components like pumps, filters, and nozzles are made from materials resistant to wear and chemical damage, ensuring long-lasting performance and minimal maintenance.
Explosion-Proof Lighting: Enhances safety when working with flammable paints and solvents. The lighting fixtures are explosion-proof and sealed against moisture and chemical ingress.
Ventilation Ducting: Made from robust materials such as galvanized steel or stainless steel, ensuring efficient removal of fumes and maintaining a clean working environment.
High-Quality Exhaust Fans: Constructed from durable materials to ensure effective air movement and safe expulsion of contaminated air.
Filters: Recirculating water wall.
Designed according to AS4114

Technical Specifications (4 models):

Water Curtain Width (mm): 2,500 / 3,000 / 4,500 / 6,000
Overall Width (mm): 2,800 / 3.300 / 4,800 / 6,300
Overall Height (mm): 2,550 / 2,550 / 2,550 / 2,550
Overall Depth (mm): 2,200 / 2,200 / 2,200 / 2,200
Airflow (L/s): 3,200 / 3,900 / 5,800 / 7,700

Read less...

To contact Nordfab Pty Ltd about Nordfab Pty Ltd Nordfab Wet Spray Booth use Get a quote.

NORDFAB WET SPRAY BOOTHS(0.40MB)
