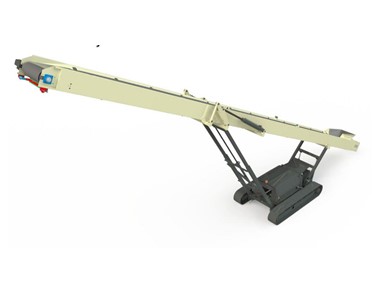

Mobile Stockpiling Conveyor | GT3260 Get latest price

Read more...

To contact Astec Australia about Mobile Stockpiling Conveyor | GT3260 use Get a quote.

With the mobility and flexibility of our conveyors, operators can reduce or even eliminate the need for wheel loaders on site. We also stackers for a variety of applications from heavy-duty crushing operations to lighter screening jobs.

Main Conveyor

• 58’6” (18m) long x 32” (800mm) wide
• Variable angle Troughing Rollers. 3 Roll set x 4”(102mm) dia.
• 4”(102mm) Plain return rollers.
• 13’’ (300mm) Head pulley
• 11” (280mm) Tail pulley complete with self-cleaning plow scraper
• Secondary spring mounted polyurethane blade scraper

Frame

• Heavy Duty side frame constructed of formed plate
• Fully enclosed power unit with hinged access doors
• Hydraulic folding head section as standard
• Hydraulic raise/ lower head and tail section
• Heavy duty track mounted Chassis for complete mobility

Plant Capacity

• Up to 330 USTPH (300 MTPH). (Capacity will vary with conditions)

Power and Hydraulics

• Standard/EU Stage V /USA Tier 4
• Deutz TD2.2 L3 Electronic 3 Cylinder, 50HP (36.9KW) @ 2200 RPM
• 53 gallon (200 liters) fuel tank. Lockable with side mounted level gauge.
• 50 gallon (185 liters) hydraulic reservoir with in line return filter. Lockable with side mounted level gauge.
• Engine mounted hydraulic pump to operate all machine functions.
• Hydraulic operated crawler tracks with pendant control for machine relocation.
• NEMA-4 Rated instrument panel: Hour meter, emergency stops, cold start
• Single Orbital drive motor on main conveyor
