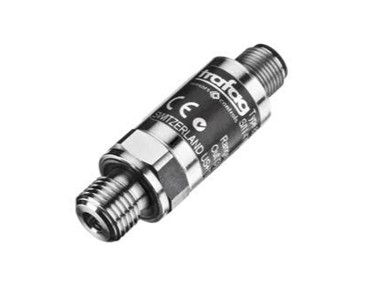

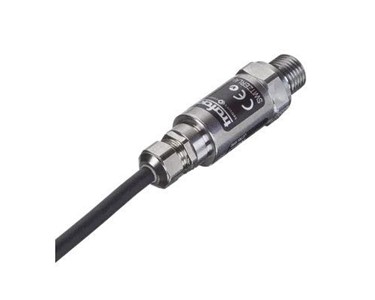

Marine Pressure Switch -40°C - +125°C | NAE 8256

Supplier: Cebeco

The engine and shipbuilding pressure switch NAE 8256 with 1 or 2 switching outputs features the extremely robust and stable thin-film-on-steel sensor element.

Receive 1-3 days from order

Main Features

Switching accuracy 0.3 %
1 or 2 PNP

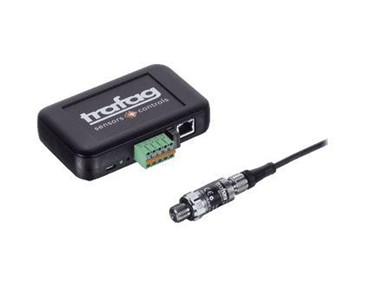

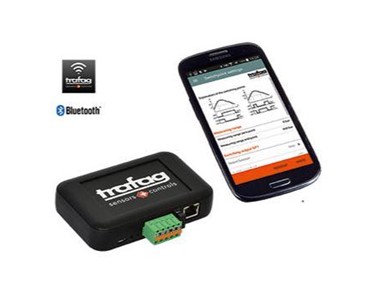

Parametrisation via smartphone App (Android)
Switching current up to 400 mA
Optional: Switching output 1 or 2 PNP

The NAE 8256 is the smallest pressure transmitter of its kind with ship approvals. The wide temperature range from -40°C up to +125°C and triple overpressure safety makes it the first choice when accurate and reliable switching signals are required under rough environmental conditions such as marine applications.

Technical Data

Product Code 8256
Name NAE
Designation Marine pressure switch
Brand Trafag
Measuring range ≥ 6.0 bar, ≤ 700 bar, ≥ 100 psi, ≤ 10000 psi
Product category Electronic Pressure Switches
Accuracy @ 25? typ. 0.3 % FS
Output signal 4 to 20 mA, PNP
Measuring principle Thin-film-on-steel
Industry Engine manufacturing, Shipbuilding, Hydraulics
Applications Engine manufacturing Hydraulics Shipbuilding
Approval / conformity DNV EU RO Mutual Recognition Type Approval Certificate
Electrical connections M12x1; cable IP67/IP68
Pressure connections G1/4" m; G1/4" m (Manometer EN 837); 1/4"NPT m; M10x1 m
Media temperature –40°C ... +125°C
Ambient temperature –40°C ... +125°C (cable Radox Tenuis 88: -40°C ... +100°C)

To contact Cebeco about Marine Pressure Switch -40°C - +125°C | NAE 8256 use Get a quote.

Main Features

Switching accuracy 0.3 %
1 or 2 PNP
Parametrisation via smartphone App (Android)
Switching current up to 400 mA
Optional: Switching output 1 or 2 PNP

Technical Data

Product Code 8256
Name NAE
Designation Marine pressure switch
Brand Trafag
Measuring range ≥ 6.0 bar, ≤ 700 bar, ≥ 100 psi, ≤ 10000 psi
Product category Electronic Pressure Switches
Accuracy @ 25? typ. 0.3 % FS
Output signal 4 to 20 mA, PNP
Measuring principle Thin-film-on-steel
Industry Engine manufacturing, Shipbuilding, Hydraulics
Applications Engine manufacturing Hydraulics Shipbuilding
Approval / conformity DNV EU RO Mutual Recognition Type Approval Certificate
Electrical connections M12x1; cable IP67/IP68
Pressure connections G1/4" m; G1/4" m (Manometer EN 837); 1/4"NPT m; M10x1 m
Media temperature –40°C ... +125°C
Ambient temperature –40°C ... +125°C (cable Radox Tenuis 88: -40°C ... +100°C)

Read less...

To contact Cebeco about Marine Pressure Switch -40°C - +125°C | NAE 8256 use Get a quote.
