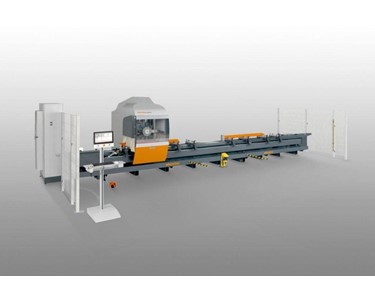

Elumatec - SBZ 130 3-Axis Profile Aluminium CNC Machine

SBZ 130 3-Axis Profile Aluminium CNC Machine

The SBZ 130 is a versatile 3-axis profile machining centre engineered for efficient and precise processing of aluminium, steel, and stainless steel profiles.

Efficient, high-precision machining of aluminium, steel, and stainless steel profiles with rapid tool changes.

Main Features

3-axis profile machining centre for aluminium, steel, and stainless steel profiles
All operations (routing, drilling, tapping) performed with the profile bar stationary to protect surfaces
On-board turret head minimises tool changing times for optimised cycles
Turret head supports eight tools or four angle routing heads
Automatic clamp positioning for material clamps
3-axis controller with the tool spindle as an additional axis
Angle heads for lateral and end machining
18.5" panel PC with Windows OS, USB ports, and network connection
eluCam software for user-friendly control

Machining Lengths (by model)

Model	Max. Machining Length (with profile end machining)	Max. Machining Length (without profile end machining)
SBZ 130 – 4.2 m	4,080 mm	4,200 mm
SBZ 130 – 7.2 m	7,080 mm	7,200 mm
SBZ 130 – 8.5 m	8,380 mm	8,500 mm
SBZ 130 – 10.2 m	10,080 mm	10,200 mm
SBZ 130 – 11.5 m	11,380 mm	11,500 mm

Technical Specifications

Traverse path (X-axis): 4,200 mm, 7,200 mm, 8,500 mm, 10,200 mm, 11,500 mm (custom lengths available), Max speed: 60 m/min
Traverse path (Y-axis): 485 mm, Max speed: 60 m/min
Traverse path (Z-axis): 340 mm, Max speed: 60 m/min
Spindle speed: Max 6,000 rpm; up to 18,000 rpm with high-speed spindle
Spindle power: 5.5 kW
Tool changer: 8 tools (turret head)
Compressed air supply: 7 bar
Power supply: 400 V, 3-phase, 50 Hz, 63 A
Air consumption: 100 L/min with spraying

To contact Tuckwell Machinery Pty Ltd about Elumatec SBZ 130 3-Axis Profile Aluminium CNC Machine use Get a quote.
