Coolamon Fertiliser Spreader 10.0 | Ltrs ...

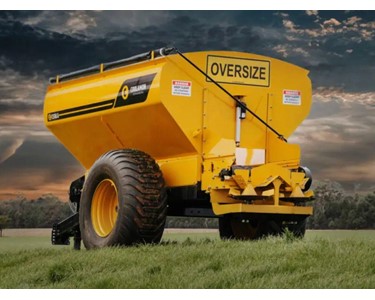

Coolamon - Fertiliser Spreader 10.0 | Ltrs – 10.000

Supplier: RedMac

Fertiliser Spreader 10.0 | Ltrs – 10.000

Coolamon Spreaders are the only ones in the world with variable sized cones, vastly improving the timing of your product as it leaves the machine.

Receive 1-3 days from order

Features

Solid one-piece drawbar/chassis
Raven Rate Controller
Rexroth Hydraulic Valve Block: Each spinner motor is controlled by separate valve and inbuilt sensor, decreasing fluctuation, improving consistency, and giving greater flexibility.
New Electric Actuated rear door: Automatically provides door height position straight back to the rate controller, ensuring accurate rate at all times.
One piece side walls and 6 mm end walls: Solid construction prevents cracking.
Hydraulic roller drive with rubber lagged drive pulley driven by 55mm shaft: Great longevity for belt and roller.
Rubber lagged self-cleaning tail pulley: Stops build-up of material.
Adjustable upside down “V” section: Takes weight off belt at start up, reduces wear on motors, stops hopper from bridging.
Powder coated with Zinc primer; 2-pak paint system with etch primer: Longer life, more durable.
Self-Cleaning Hopper: Quick and easy maintenance.
Independent spinner control with live spinner speed feedback from both spinners, controlled independent from individual PWM: Accurate spinner speed and easier to troubleshoot.
1-metre-wide cleated belt with polyurethane skirts: Widest in the business allowing smooth even flow of material onto the spinners, handles all bulk material and applies it at high rates.
Heavy Duty Roll Over Tarp: Easily access for quick product protection.
Curved back spinner with bevel edge spinner discs: Controlled distribution.
Variable sized cones: Spread all products quickly and easily.
Sliding Axle 2m to 3m wheel centres: Greater versatility suitable for all farming practices.

Capacity

Ltrs – 10.000
Lime – 12.5 Tonne
Urea – 7.6 Tonne

Dimensions

Machine Length 6.8 m
Machine Height 3 m
Hopper Length 3.7 m
Hopper Width 6.8 m
Flotation Tyres 650/65 – 30.5

Weight

Machine Tare Weight 3.4T
Gross Weight 15.9T
Weight Per Tyre (loaded) 6.6T
Drawbar Load (loaded) 2.7T

To contact RedMac about Coolamon Fertiliser Spreader 10.0 | Ltrs – 10.000 use Get a quote.
