Autel MaxiSYS MS909CV Commercial Vehicle ...

Autel - MaxiSYS MS909CV Commercial Vehicle Diagnostic Tablet Price Guide: $8,249

Supplier: AutoTech Workshop Solutions

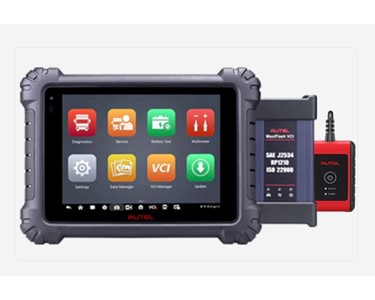

MaxiSYS MS909CV Commercial Vehicle Diagnostic Tablet

The MaxiSYS MS909CV is a professional-grade commercial vehicle diagnostics tablet, designed for extensive coverage across light, medium, and heavy-duty vehicles.

Supports advanced diagnostics for over 80 light, medium, and heavy-duty vehicle models.

The MaxiSYS MS909CV is a commercial vehicle diagnostics tablet equipped with a wireless Vehicle Communication Interface (VCI) and J2534 pass-through device. It provides advanced diagnostics for over 80 vehicle models and is ideal for automotive workshops dealing with fleet maintenance or varied vehicle types.

Key Features

Upgraded Octa-Core Qualcomm 660 processor
Runs on Android 10.0 with 4GB RAM & 128GB onboard storage
9.7-inch TFT-LCD touchscreen (1536 x 2048 resolution)
Comes with MaxiFlash wireless VCI + J2534 pass-through device
Advanced diagnostics with module topology (select vehicles)
Enhanced AutoSCAN & VINScan
Optional ADAS App for advanced ADAS calibration (classes 3-8)
Support for heavy duty battery test & health reports
Includes MaxiBAS B200 battery, starting/charging system tester, multimeter, amp clamps, and alligator clamps
Bluetooth 5.0 support, dual Wi-Fi, GPS, HDMI 2.0, USB, SD card (up to 256GB), and dual cameras (front & rear, both 16MP)

Specifications

Operating System	Android 10.0
Processor	Qualcomm 660 Octa-core (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory	4GB RAM, 128GB On-board Memory, SD Card up to 256GB
Display	9.7-inch TFT-LCD (1536 x 2048 resolution), capacitive touchscreen
Connectivity	Dual Wi-Fi (802.11 a/b/g/n/ac 2×2 MIMO), Bluetooth 5.0 + BR/EDR, GPS, USB, HDMI 2.0
Camera	Front & Rear: 16 Megapixel, Autofocus with Flashlight
Sensors	Gravity Accelerometer, Ambient Light Sensor
Audio	Microphone, Dual Speakers, 3.5mm stereo headset jack
Battery	15000mAh 3.8V lithium-polymer, charging via 12V AC/DC
Operating Temperature	0°C to 50°C
Dimensions (W x H x D)	304.4mm x 227.8mm x 42.5mm
Weight	1.66kg
Protocols Supported	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411, ISO-11898, SAE-J2819, TP20, TP16, ISO-9141, ISO-14230, J2610, UART Echo Byte, J2809, J2740, J1567, Ford UBP, Nissan DDL UART, BMW DS2/DS1, VAG KW81, KW82, J1708, J1850 PWM/VPW

Additional Functionalities

Read & erase codes, view & graph live data, and perform active tests
ADAS calibration coverage for class 3-8 vehicles (dynamic & static)
Extensive OE-level system coverage for light, medium & heavy-duty vehicles
