WAM SlideOut Rotary Valves REC - RES

WAM - SlideOut Rotary Valves REC - RES

Supplier: WAM Australia Pty Ltd

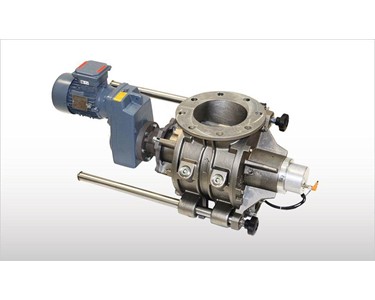

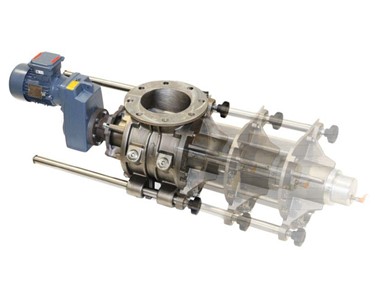

SlideOut Rotary Valves REC - RES

SlideOut Rotary Valves are engineered with a continuously revolving rotor featuring two compartments, both of which are filled with material simultaneously via the top inlet.

Precision feeding for powders & granules

SlideOut Rotary Valves are engineered with a continuously revolving rotor featuring two compartments, both of which are filled with material simultaneously via the top inlet.

Function: The valves come in two distinct versions: REC and RES.

The REC Drop-through SlideOut Rotary Valve is equipped with a circular inlet and outlet. The material fed by the rotor falls by gravity through the lower outlet into a container or onto a downstream conveying system for further processing.

With the RES Blow-through SlideOut Rotary Valve also featuring a circular inlet flange and an outlet pipe connection on the bottom on both sides, after less than half a rotor revolution, the material is discharged and channelled into an air flow within a pneumatic conveying line.

Features:

Standard rotor with integrated shaft
Drive unit mounted on rotor shaft
Air-purged shaft seal
Feed rate: 5-10-20-35 litres per revolution (0.17-0.35-0.70-1.2 cu ft/rev) for 2”, 3”, 4” and 5” conveying pipes
Working temperature: -40 ~ 150 °C (-40 ~ 302 °F)
Working pressure: up to 1 bar (14 psi)
Casing: 316 SS
EN 1092-1 PN 10 Flanges (DIN 2576)
Sturdy and compact structure
Various finishing options available
EC 1935/2004-certified materials
ATEX 20/22 certification

Benefits:

Simple, safe and cost-effective maintenance
Durable, long-lasting and space-efficient
Flexible in handling of different types of materials
Preserves physical properties of material handled

To contact WAM Australia Pty Ltd about WAM SlideOut Rotary Valves REC - RES use Get a quote.

SlideOut Rotary Valves are engineered with a continuously revolving rotor featuring two compartments, both of which are filled with material simultaneously via the top inlet.

Function: The valves come in two distinct versions: REC and RES.

Features:

Standard rotor with integrated shaft
Drive unit mounted on rotor shaft
Air-purged shaft seal
Feed rate: 5-10-20-35 litres per revolution (0.17-0.35-0.70-1.2 cu ft/rev) for 2”, 3”, 4” and 5” conveying pipes
Working temperature: -40 ~ 150 °C (-40 ~ 302 °F)
Working pressure: up to 1 bar (14 psi)
Casing: 316 SS
EN 1092-1 PN 10 Flanges (DIN 2576)
Sturdy and compact structure
Various finishing options available
EC 1935/2004-certified materials
ATEX 20/22 certification

Benefits:

Simple, safe and cost-effective maintenance
Durable, long-lasting and space-efficient
Flexible in handling of different types of materials
Preserves physical properties of material handled

Read less...

To contact WAM Australia Pty Ltd about WAM SlideOut Rotary Valves REC - RES use Get a quote.

RECRES_1024_EN_EDIT(0.71MB)
