WAM - Blow-Through Rotary Valves RVS Get latest price

Read more...

To contact WAM Australia Pty Ltd about WAM Blow-Through Rotary Valves RVS use Get a quote.

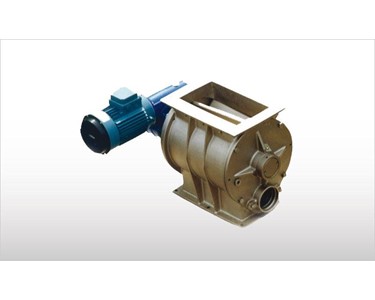

RVS Blow-Through Rotary Valves consist of a tubular cast iron or stainless steel casing, a horizontally mounted rotor with a certain number of oblique V-shaped cross section compartments, a drive unit and a casing cover at each end.

Function: Two compartments at a time of the continuously turning rotor are filled up with material entering through the inlet at the top of the Rotary Valve. After less than half a turn material falls through the bottom outlet into an air stream passing through a pneumatic conveying pipeline connected with the bottom part of the Rotary Valve.

Features:

• Feed rate: 5 ~ 80 litres per revolution
• Different drives for different rotation speeds
• Various materials and treatments available depending on material handled
• Maximum differential pressure: 0.8 bar (11.6 PSI)

Benefits:

• Robust, compact design
• Standard open rotor with beveled edges (except VS80)
• Easy access to all internal mechanical parts

Options:

• Available as ATEX version, Zone 22
