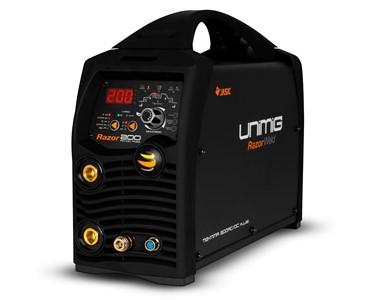

Unimig - Precision TIG Welder | Razor 200 AC/DC

Precision TIG Welder | Razor 200 AC/DC

The Razor 200 AC/DC TIG Welder delivers precise control and versatile TIG/STICK welding performance in one compact machine. Perfect for aluminium, stainless, and mild steel work on site or in-shop.

Receive 1-3 days from order

The Razor 200 AC/DC is a professional-grade TIG welder offering High Frequency AC/DC and Pulse TIG functionality for advanced welding precision. Fitted with a 15A plug, this portable powerhouse handles aluminium, stainless steel, and other metals with ease. Full parameter control includes slope times, gas control, and start/finish currents. It comes equipped with the advanced ARC TORCHOLOGY T2 TIG Torch and is foot pedal–ready for even more control. Weighing only 10kg, it’s ideal for both workshop and mobile welding professionals demanding high-quality welds across a range of materials.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE – 240V Single Phase
SUPPLY PLUG – 15 AMP
RATED INPUT POWER (kVA) – 6.0
Ieff (A) – 15.0
RATED OUTPUT – 5-200A
NO LOAD VOLTAGE (V) – 9-68
PROTECTION CLASS – IP21S
INSULATION CLASS – F
POWER FACTOR – 0.7
MINIMUM GENERATOR (kVA) – 9.0
DINSE CONNECTOR – 35/50
STANDARD – AS/NZ60974-1
SUITABLE MATERIAL – Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper, Aluminium, Zinc Alloys
WARRANTY (Years) – 3

TIG SPECIFICATIONS

TIG FUNCTION TYPE – AC/DC HF TIG & AC/DC Pulse
TIG WELDING CURRENT RANGE – 5-200A
TIG DUTY CYCLE @ 40°C – 25% @ 200A
TIG WELDING THICKNESS RANGE – 1-8mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE – 10-160A
STICK DUTY CYCLE @ 40°C – 30% @ 160A
STICK ELECTRODE RANGE – 2.5-4.0mm
STICK WELDING THICKNESS RANGE – 2-12mm
ARC FORCE – 0-40

SIZE & WEIGHT

DIMENSIONS (mm) – 426x162x326mm
WEIGHT (kg) – 10kg

To contact Southern Cross Group about Unimig Precision TIG Welder | Razor 200 AC/DC use Get a quote.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE – 240V Single Phase
SUPPLY PLUG – 15 AMP
RATED INPUT POWER (kVA) – 6.0
Ieff (A) – 15.0
RATED OUTPUT – 5-200A
NO LOAD VOLTAGE (V) – 9-68
PROTECTION CLASS – IP21S
INSULATION CLASS – F
POWER FACTOR – 0.7
MINIMUM GENERATOR (kVA) – 9.0
DINSE CONNECTOR – 35/50
STANDARD – AS/NZ60974-1
SUITABLE MATERIAL – Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper, Aluminium, Zinc Alloys
WARRANTY (Years) – 3

TIG SPECIFICATIONS

TIG FUNCTION TYPE – AC/DC HF TIG & AC/DC Pulse
TIG WELDING CURRENT RANGE – 5-200A
TIG DUTY CYCLE @ 40°C – 25% @ 200A
TIG WELDING THICKNESS RANGE – 1-8mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE – 10-160A
STICK DUTY CYCLE @ 40°C – 30% @ 160A
STICK ELECTRODE RANGE – 2.5-4.0mm
STICK WELDING THICKNESS RANGE – 2-12mm
ARC FORCE – 0-40

SIZE & WEIGHT

DIMENSIONS (mm) – 426x162x326mm
WEIGHT (kg) – 10kg
