Sepha Leak Testing and Deblistering

Sepha - Leak Testing and Deblistering

Supplier: MPI Australia

Leak Testing and Deblistering

Sepha Leak Testing and Deblistering systems ensure packaging integrity and efficient product recovery. With non-destructive testing, precision, and compliance, they deliver reliability across pharma and medical packaging lines.

Applications

Pharmaceutical Packaging Integrity: Ensures seal and container closure integrity for blisters, pouches, bottles, ampoules, vials, and medical devices.
Quality Control and R&D: Validates packaging performance in stability studies and production QA processes.
Product Recovery: Efficiently retrieves tablets and capsules from rejected blister packs for reprocessing, quality testing, or repackaging.
Regulatory Compliance: Meets ASTM and USP 1207 standards for non-destructive leak detection in pharmaceutical and medical device packaging

Key Features and Specifications

Leak Testing Machines

Model	Type	Detection Sensitivity	Key Features	Suitable Packaging
VisionScan 3D	Blister Leak Tester	Detects down to 5 µm	Tool-free, non-destructive 3D vacuum deflection test; large area (297 × 210 mm); ASTM F3169-16 compliant	Blister packs with tablets/capsules
Multi-Q / Multi-Q HD	Container Closure Integrity Tester (CCIT)	Detects down to 1 µm	Vacuum/pressure decay testing; 21 CFR Part 11 compliant; interchangeable tooling; Active Directory integration	Vials, ampoules, BFS, prefilled syringes

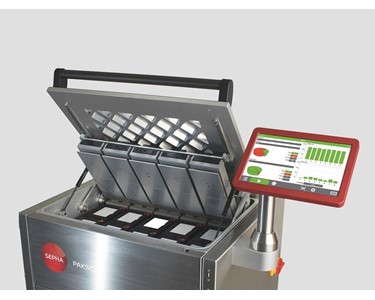

PakScan	Force Decay Leak Tester	Detects down to 10 µm	Tests up to 10 packs at once; 21 CFR Part 11 audit-ready data; quick 20-sec cycles	Pouches, sachets, bags, stick packs
MediScan	Flexible Pack Leak Tester	Detects down to 10 µm	No tooling required; non-destructive seal integrity test; stores 30 000 methods	Non-porous pouches, sachets, medical device packs

All models feature GMP-compliant stainless-steel construction, touch-screen control, and USB/Ethernet connectivity

Deblistering Machines

Model	Operation	Speed (packs/min)	Compatible Packs	Key Features
PressOut Manual Wide	Manual	Up to 20	Push-through blisters (thermoform/coldform)	Portable & tool-free; cGMP; cost-effective for small batches

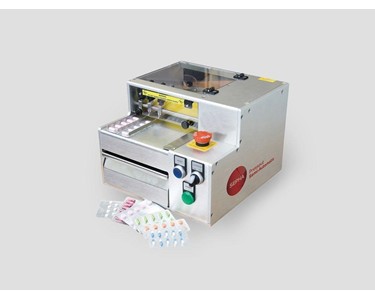

PressOut Semi-Automatic	Semi-auto	Up to 30	Push-through blisters	Motor-driven rollers; gentle product recovery; 3-min changeover
PressOut Universal	Automatic	Up to 50	All formats – push-through, child-resistant, peelable	High-speed continuous operation; automatic feeding; zero contamination

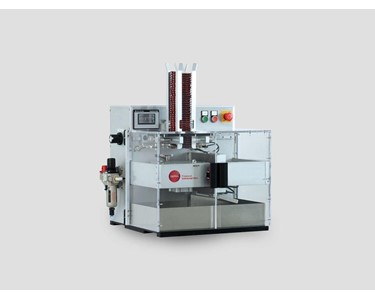

PressOut Universal Mini	Automatic (bench-top)	Up to 16	Peelable & child-resistant packs	Compact; gentle foil-cutting; ideal for short runs and frequent changeovers

All units are made from 316/304 stainless steel, fully cGMP compliant, and available with 12-month warranty and optional extensions.

Why Choose These Solutions

Non-Destructive Testing: Maintains product and pack integrity—reducing waste and enabling reuse.
Regulatory Compliant: Meets ASTM F2338, F3169 and USP 1207 for CCIT and seal integrity.
Efficiency & Accuracy: Detects micro-leaks down to 1 µm with fast, repeatable results.
Flexible Product Recovery: Automated deblistering solutions recover valuable tablets and capsules safely.
User-Friendly Design: Touch screen controls, tool-less setup, and quick changeovers for maximum uptime.
Sustainable Operation: Reduces product loss and supports environmentally responsible manufacturing

Targeted Segments

Pharmaceutical Manufacturers – blister and container packaging integrity testing.
Medical Device Producers – sterility and seal integrity verification.
Contract Packers & QA Labs – non-destructive validation and R&D trials.
Clinical Trial and Hospital Pharmacies – product recovery and repackaging for study use.
Packaging Development Teams – material performance testing and process optimization.

Applications

Pharmaceutical Packaging Integrity: Ensures seal and container closure integrity for blisters, pouches, bottles, ampoules, vials, and medical devices.
Quality Control and R&D: Validates packaging performance in stability studies and production QA processes.
Product Recovery: Efficiently retrieves tablets and capsules from rejected blister packs for reprocessing, quality testing, or repackaging.
Regulatory Compliance: Meets ASTM and USP 1207 standards for non-destructive leak detection in pharmaceutical and medical device packaging

Key Features and Specifications

Leak Testing Machines

Model	Type	Detection Sensitivity	Key Features	Suitable Packaging
VisionScan 3D	Blister Leak Tester	Detects down to 5 µm	Tool-free, non-destructive 3D vacuum deflection test; large area (297 × 210 mm); ASTM F3169-16 compliant	Blister packs with tablets/capsules
Multi-Q / Multi-Q HD	Container Closure Integrity Tester (CCIT)	Detects down to 1 µm	Vacuum/pressure decay testing; 21 CFR Part 11 compliant; interchangeable tooling; Active Directory integration	Vials, ampoules, BFS, prefilled syringes
PakScan	Force Decay Leak Tester	Detects down to 10 µm	Tests up to 10 packs at once; 21 CFR Part 11 audit-ready data; quick 20-sec cycles	Pouches, sachets, bags, stick packs
MediScan	Flexible Pack Leak Tester	Detects down to 10 µm	No tooling required; non-destructive seal integrity test; stores 30 000 methods	Non-porous pouches, sachets, medical device packs

All models feature GMP-compliant stainless-steel construction, touch-screen control, and USB/Ethernet connectivity

Deblistering Machines

Model	Operation	Speed (packs/min)	Compatible Packs	Key Features
PressOut Manual Wide	Manual	Up to 20	Push-through blisters (thermoform/coldform)	Portable & tool-free; cGMP; cost-effective for small batches
PressOut Semi-Automatic	Semi-auto	Up to 30	Push-through blisters	Motor-driven rollers; gentle product recovery; 3-min changeover
PressOut Universal	Automatic	Up to 50	All formats – push-through, child-resistant, peelable	High-speed continuous operation; automatic feeding; zero contamination
PressOut Universal Mini	Automatic (bench-top)	Up to 16	Peelable & child-resistant packs	Compact; gentle foil-cutting; ideal for short runs and frequent changeovers

All units are made from 316/304 stainless steel, fully cGMP compliant, and available with 12-month warranty and optional extensions.

Why Choose These Solutions

Non-Destructive Testing: Maintains product and pack integrity—reducing waste and enabling reuse.
Regulatory Compliant: Meets ASTM F2338, F3169 and USP 1207 for CCIT and seal integrity.
Efficiency & Accuracy: Detects micro-leaks down to 1 µm with fast, repeatable results.
Flexible Product Recovery: Automated deblistering solutions recover valuable tablets and capsules safely.
User-Friendly Design: Touch screen controls, tool-less setup, and quick changeovers for maximum uptime.
Sustainable Operation: Reduces product loss and supports environmentally responsible manufacturing

Targeted Segments

Pharmaceutical Manufacturers – blister and container packaging integrity testing.
Medical Device Producers – sterility and seal integrity verification.
Contract Packers & QA Labs – non-destructive validation and R&D trials.
Clinical Trial and Hospital Pharmacies – product recovery and repackaging for study use.
Packaging Development Teams – material performance testing and process optimization.
