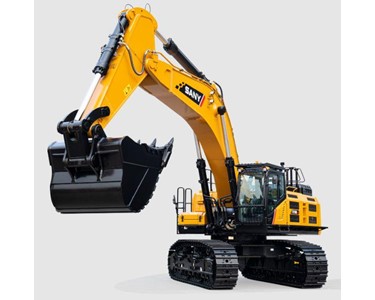

SANY - SY750H - Large Excavator 75T Get latest price

Read more...

To contact WATM Equipment about SANY SY750H - Large Excavator 75T use Get a quote.

Features:

• Super adaptability
• Longer lifetime
• Low maintenance cost

Specifications:

Displacement

15.681 L

Engine model

Isuzu 6WG1, Tier 3

Rated power

377kW/1800rpm

OPERATION RANGE

Height at min. swing radius

9780 mm

Max. digging depth

7620 mm

Max. digging height

11,200 mm

Max. digging reach

12,050 mm

Max. dumping height

7250 mm

Min. swing radius

5520 mm

Operating weight

76,200 kg

DIMENSIONS

Min. ground clearance

880 mm

Tail swing radius

4220 mm

Track length

5865 mm

Transport height

4855 mm

Transport length

12,865 mm

Transport width

4320 mm

Upper width

3460 mm

UNDERCARRIAGE/WORKING DEVICE

Arm length

3 m

Boom length

7 m

Bucket capacity

4.2 m³

Track gauge

3380/2780

PERFORMANCE

Arm digging force

345 kN

Fuel tank capacity

940 L

Gradeability

35°

Ground pressure

110 kPa

Hydraulic tank capacity

700 L

Swing speed

7.3 rpm

Travel speed

4.5/2.9 km/h

HYDRAULIC SYSTEM

Hydraulic motors – swing

7.3 rpm
