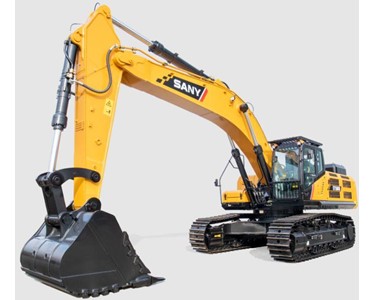

SANY SY500H - Large Excavator 50T

SANY - SY500H - Large Excavator 50T

Supplier: WATM Equipment

SY500H - Large Excavator 50T

ENGINE MODEL: ISUZU 6WG1 (T3) OPERATING WEIGHT: 52000KG/52t. RATED POWER: 300KW/1800RPM SANY’s most powerful large excavator, the SY500H is a powerhouse, boasting 400 HP and a digging depth of over 25 feet.

Receive 1-3 days from order

The selectable working modes allow you to match performance to the job application to balance power and efficiency. Positive flow hydraulics further improve operating efficiency, while fuel-efficient design features help you save on fuel costs.

Features:

Several attachments and work tools are available to satisfy European and American high-end market demand.
Multiple counterweight weights available. Easily removable to satisfy various transportation regulations and requirements.
Operator selectable work modes and all aspects of the machine configuration can be displayed on the operator monitor screen for operator convenience.
The widened, heated suspension seat was carefully selected based on many hours of operator feedback.

Specifications:

Displacement

11.8 L

Engine model

Isuzu 6WG1 (T3)

Rated power

300Kw/1800rpm

OPERATION RANGE

Max. digging depth

7705 mm

Max. digging height

10,929 mm

Max. digging reach

12,035 mm

Max. dumping height

7647 mm

Max. ground clearance of blade up

560 mm

Max. vertical digging depth

6278 mm

Min. swing radius

5216 mm

Operating weight

52,000 kg

DIMENSIONS

Cab height

3423 mm

Min. ground clearance

560 mm

Tail swing radius

3850 mm

Track length

5459 mm

Transport height

3874 mm

Transport length

12,194 mm

Transport width

3640 mm

Upper width

3292 mm

UNDERCARRIAGE/WORKING DEVICE

Arm length

3350 mm

Boom length

7000 mm

Bucket capacity

2.2 m³

Track gauge

2740 mm

Track width

900 mm

PERFORMANCE

Arm digging force

207.0 kN

Bucket digging force

275.0 kN

Cooling system

50.0 L

Engine oil

33.0 L

Fuel tank capacity

680.0 L

Gradeability

35°

Ground pressure

59 kPa

Hydraulic tank capacity

480 L

Swing speed

8.0 rpm

Travel speed

3.4/5.2 km/hr

HYDRAULIC SYSTEM

Hydraulic motors – swing

8.0 rpm

Main pump – maximum flow

720.0 L/min

To contact WATM Equipment about SANY SY500H - Large Excavator 50T use Get a quote.

Features:

Several attachments and work tools are available to satisfy European and American high-end market demand.
Multiple counterweight weights available. Easily removable to satisfy various transportation regulations and requirements.
Operator selectable work modes and all aspects of the machine configuration can be displayed on the operator monitor screen for operator convenience.
The widened, heated suspension seat was carefully selected based on many hours of operator feedback.

Specifications:

Displacement

11.8 L

Engine model

Isuzu 6WG1 (T3)

Rated power

300Kw/1800rpm

OPERATION RANGE

Max. digging depth

7705 mm

Max. digging height

10,929 mm

Max. digging reach

12,035 mm

Max. dumping height

7647 mm

Max. ground clearance of blade up

560 mm

Max. vertical digging depth

6278 mm

Min. swing radius

5216 mm

Operating weight

52,000 kg

DIMENSIONS

Cab height

3423 mm

Min. ground clearance

560 mm

Tail swing radius

3850 mm

Track length

5459 mm

Transport height

3874 mm

Transport length

12,194 mm

Transport width

3640 mm

Upper width

3292 mm

UNDERCARRIAGE/WORKING DEVICE

Arm length

3350 mm

Boom length

7000 mm

Bucket capacity

2.2 m³

Track gauge

2740 mm

Track width

900 mm

PERFORMANCE

Arm digging force

207.0 kN

Bucket digging force

275.0 kN

Cooling system

50.0 L

Engine oil

33.0 L

Fuel tank capacity

680.0 L

Gradeability

35°

Ground pressure

59 kPa

Hydraulic tank capacity

480 L

Swing speed

8.0 rpm

Travel speed

3.4/5.2 km/hr

HYDRAULIC SYSTEM

Hydraulic motors – swing

8.0 rpm

Main pump – maximum flow

720.0 L/min

Read less...

To contact WATM Equipment about SANY SY500H - Large Excavator 50T use Get a quote.
