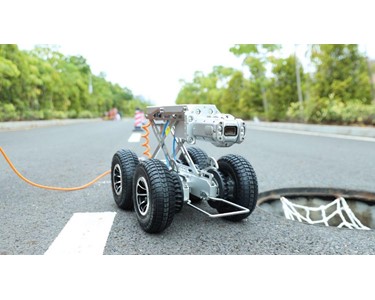

Robotic Crawler Sewer & Drain Inspection Camera System | S300EHD Get latest price

The SROD S300EHD is a professional-grade robotic pipe inspection camera designed for demanding sewer, stormwater, and industrial drain environments. Engineered for pipes ranging from 150mm to 2000mm (6"–80"), it delivers Full HD video, long-range crawler operation, and exceptional maneuverability for municipal, commercial, and industrial pipeline inspections.

Key Features:

Full HD Pan & Tilt Camera: 1080p video, 360° pan, ±135° tilt, 12 adjustable LEDs, optional laser measurement.

Rugged Crawler Platform: IP68-rated aluminum alloy, six-wheel drive, interchangeable wheel sets for all pipe conditions.

Long-Range Motorized Reel: Up to 300m Kevlar-reinforced cable with electronic counter and automatic tension control.

Advanced Control Console: 15.6" sunlight-readable HD screen, joystick/touchscreen interface, built-in 512Hz sonde.

Comprehensive Reporting Software: SROD PipeSight™ for defect coding, video capture, PDF reporting; PACP/WRc compliant.

Applications:

Municipal sewer inspections, industrial wastewater analysis, contractor CCTV drain inspections, post-construction validation, routine maintenance, and underground infrastructure diagnostics.

Why Choose the SROD S300EHD?

Unmatched visual clarity, superior mobility, extended reach, rugged durability, professional reporting, and modular upgrade options make it ideal for challenging underground inspections.

Technical Specs:

• Pipe Diameter: 150mm–2000mm (6"–80")
• Camera: Full HD 1080p CMOS, 360° pan, ±135° tilt
• Cable: 150–300m motorized, Kevlar-reinforced
• Control: 15.6" HD touchscreen + joystick
• Lighting: 12 high-intensity adjustable LEDs
• Storage: USB, SD card, network export
• Sonde: 512Hz locatable
• Operating Temp: -10°C to +50°C
