Radiodetection RF Marker Locator Kit | ...

Radiodetection - RF Marker Locator Kit | RD7100DLM

Supplier: Testrix

RF Marker Locator Kit | RD7100DLM

The Radiodection RD 7100 DLM locator is a simple to use, accurate underground service locator, optimised for use in the construction industry.

Receive 1-3 days from order

LOCATOR:

The Radiodection RD7100DLM locator is a simple to use, accurate underground service locator, optimised for use in the construction industry. With four active frequencies, and two passive frequencies, the RD7100DLM covers the majority of locating tasks relevant to construction sites. It's rugged housing and high contrast screen make it suitable for use in a range of weather condtions. These RF marker models detect all commonly used RF utility markers, making them suitable for use across a range of industries. Combined mode allows for scanning of buried cables, pipes and RF utility markers all at the same time, reducing survey time and offering a more simplistic user experience. Radiodetection's unique automatic depth estimation provides measurements when the locator is within close proximity of a RF marker. Rechargeable Li-Ion batteries are standard across all of the RD7100 marker locators, and all are equipped with Bluetooth connectivity. Like all underground service and utilities locators in the Radiodetection range, the RD7100DLM is built of performance, quality and durability. With more basic features and a lower price than some of the other service locators in the RD7000+ range, Radiodetection have designed the RD7100DLM to be a simple to use locator, giving access to the range of precision locators.

Features:

Five active locate frequencies
Two passive frequencies (power and radio)
Built in transponder locates all nine common RF frequencies
Combined peak and null mode
Large high contrast screen
Use with RD Maps Android app to create real time utility maps
Can be paired with Radiodetections range of transmitters

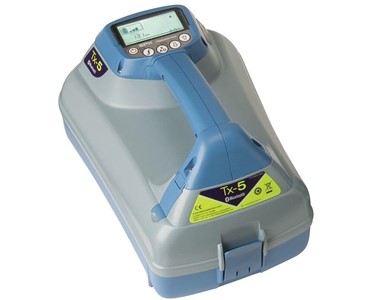

TRANSMITTER:

The TX5 is an easy to use, transmitter. The family of Radiodetection transmitters supports the entire range of Radiodetection cable and pipe locators. All models feature a three stage phase sensitive amplifier that delivers a ground impedance compensated and constant current across its entire bandwidth in direct, connect, clamp or inductive modes. The range is designed to deliver superior performance using minimal power consumption in a lightweight and well balanced format. Multimeter function provides measurement of output voltage, line voltage, current, impedance and power.

Technical Specifications:

Protected to IP54
External 12DC operation
High Contrast LCD screen
Three Power versions, 1Watt, 3 Watt and 10 Watt
Batteries 8 x D cell (LR02)

The TX5 5-watt transmitter is an easy to use transmitter from Radiodetection. Based on a fully digital platform, the TX family of Radiodetection transmitters supports the entire range of RD7100, RD7200, RD8100 and RD8200 cable and pipe locators. The TX5 is an easy to use, entry-level, transmitter. All models feature a three-stage phase sensitive amplifier that delivers a constant current across its entire bandwidth in direct connect, clamp or inductive modes. The TX range is designed to deliver superior performance using minimal power consumption in a light weight and well-balanced, format. Based on a fully digital platform, the family of Radiodetection transmitters has been to support the range of Radiodetection RD7100, RD7200, RD8100 and RD8200 cable, pipe and RF marker locators. The TX5 is a low power transmitter. Both the TX5 and TX10 feature Fault Find as standard. All models feature constant current across their entire bandwidth in either direct connect, clamp or inductive mode. The transmitters are light-weight (6lb / 2.9kg), well-balanced and IP54 rated to cope with demanding environmental conditions. Each model has a removable accessory tray and a weatherproof battery compartment. A large, high contrast, backlit LCD screen provides the user with clear information.
