Pinpoint Plastic Pipes and Underground Leaks with Confidence and Precision

The Radiodetection RD510 Plastic Pipe Locator and Water Leak Detector is a highly specialised tool designed for accurate detection of underground plastic water pipes and pinpointing leaks with unmatched precision. Engineered for utility professionals, contractors, and maintenance crews, the RD510 is ideal for non-metallic pipe detection where traditional electromagnetic locators fall short.

Leveraging advanced acoustic and pressure wave technology, the RD510 allows you to trace plastic water distribution systems efficiently, even when they lack a conductive trace wire. With its ergonomic design, intuitive interface, and field-proven performance, the RD510 is an essential tool for reducing excavation costs, minimising disruption, and ensuring fast leak identification and repair.

Key Features and Benefits

Locate Plastic Pipes with Acoustic Technology

Traditional pipe locators rely on metallic conductivity — but plastic pipes are non-conductive. The RD510 overcomes this limitation using pulse wave and acoustic technology, transmitting a pressure wave through the water column that can be detected acoustically as it travels along the pipe.

• No trace wire required
• Perfect for PE, PVC, and other plastic materials
• Locates pipes up to 5m (16.25ft) deep depending on conditions

Water Leak Detection Functionality

Integrated with a high-sensitivity acoustic microphone, the RD510 not only traces pipe routes but also identifies leaks by detecting the characteristic noise of water escaping under pressure.

• Detect leaks in plastic and metal pipes
• Adjustable audio filtering to differentiate leak sounds
• Useful in residential, commercial, and municipal systems

Highly Sensitive Ground Microphone

The RD510 receiver unit features a built-in ground microphone that captures the subtle acoustic signals generated by leaks or pulse waves traveling through water in pressurised pipes. With high-fidelity sound processing, it enhances the clarity and reliability of leak noise localisation.

Complete Kit with High Pressure Pulse Generator (suitable for up to 1,000kPa)

The system includes a pulse generator (transmitter) that connects to a standard outdoor hydrant, tap, or riser. It introduces a pressure pulse into the pipe system, which travels through the water and reflects off changes in direction, fittings, or leaks — creating detectable sound patterns.

• Easy connection to domestic and commercial pipe networks
• Pressure-pulse transmitter is battery operated and portable
• Generates strong, distinct pulses for easy detection

Long Battery Life for Extended Field Use

Both the pulse generator is powered by standard batteries, with excellent runtime for full-day operations. The receiver unit has a rechargeable battery

• Easily replaceable batteries
• Energy-efficient design
• No need for mains power or complicated charging procedures

Rugged, Portable, and Ready for the Field

The RD510 is built for harsh site conditions, with a durable waterproof housing, ergonomic grip, and shock-resistant design. It’s lightweight and easily portable, making it perfect for daily field deployment.

• IP65 rated weatherproof housing
• Compact and easy to carry
• Designed for field durability

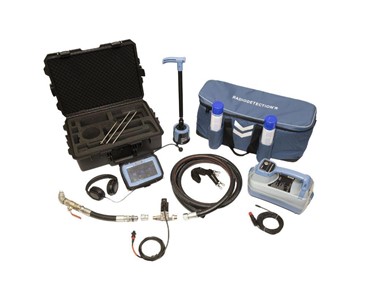

What’s Included in the Radiodetection RD510 Kit?

• RD510 Acoustic Receiver with Built-in Microphone
• Pulse Generator (Transmitter)
• Pulse water valve for up to 1,000kPa
• Headphones for acoustic monitoring
• Connection accessories for taps, hydrants, or risers
• Rugged carrying case
• User manual and quick start guide

Ideal Applications

The RD510 is purpose-built for professionals who need to detect underground water infrastructure without relying on conductive materials. Key applications include:

• Municipal water utility maintenance
• Leak detection in residential subdivisions
• Plastic pipe tracing in new developments
• Contractor site inspections
• Non-invasive water pipe route identification

Technical Specifications

Pipe Detection Method: Acoustic signal from pressure pulse

Max Detection Depth: Up to 5 m (16.25 ft), depending on soil

Leak Detection Capability: Yes – built-in ground microphone

Pulse Generator Output: Pressure wave via hydrant/tap connector – up to 1,000 kPa

Acoustic Filter Modes: Adjustable for leak vs. pulse signals

Receiver Power Supply: Battery operated (Rechargeable)

Weight: Approx. 2.5 kg

Ingress Protection Rating: IP65

Operating Temperature Range: -10°C to +50°C

Headphones: Supplied for clear signal detection

Why Choose the Radiodetection RD510?

The RD510 bridges the gap between traditional pipe locators and advanced leak detection. When metal pipes or tracer wires aren’t available, or when leak pinpointing becomes critical, the RD510 delivers reliable results where other tools can’t. With a compact design, advanced acoustic analysis, and rugged durability, it’s a must-have for every utility maintenance team or contractor involved in underground pipe infrastructure.

Order the Radiodetection RD510 Today

Invest in pinpoint accuracy and efficiency. Whether you’re working on plastic pipe networks, tracking suspected water loss, or conducting infrastructure surveys, the Radiodetection RD510 offers the performance and reliability needed in the field.
