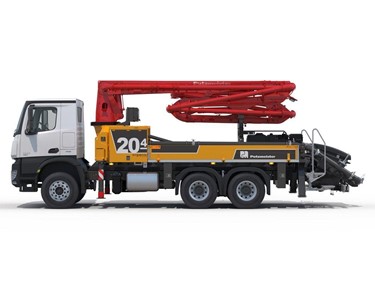

Putzmeister - Compact Truck-Mounted Concrete Pump | M20-4 Get latest price

The  Putzmeister M20-4 truck-mounted concrete pump comes with a complete new pedestal design and new core pumps .11H and .15iLS.

Designed for tightest spots the BSF 20-4 has the smallest support width and lowest unfolding height in the Putzmeister Portfolio. This machine can be operated where no other machine can be set up. It finds its application in halls, tunnels, renovations, or line jobs.

Can be mounted on 2-Axle or 3-Axle chassis from Mercedes or Volvo.

Key Features

• Easier set-up with the new TRC pedestal
• Stepless outrigger system - any leg position is possible
• Various storage options for every configuration
• ZR boom folding with 3.9m unfolding height
• Eco friendly hybrid drive iONTRON as option (with 3-Axle chassis)
• Latest Ergonic 3 control

General Information

• Arms: 4
• Folding Type: ZR
• Vertical Reach: 19.8 m
• Horizontal Reach gross: 16.3 m
• Horizontal Reach net: 13.7 m
• Reach Depth: 10.4 m
• Unfolding Height: 3.9 m
• End Hose - Length: 3 m
• Delivery Line (DN, Pressure): 125/85 mm/bar
• Support width Standard (front-rear): 3.8 m
• Support width OSS (front-rear): 3.1 m
• Support width iSC (front/rear): 2.6-3.8 m
• Length x Width x Height: 10000x2500x<4000 mm

To contact Putzmeister about Putzmeister Compact Truck-Mounted Concrete Pump | M20-4 use Get a quote.
