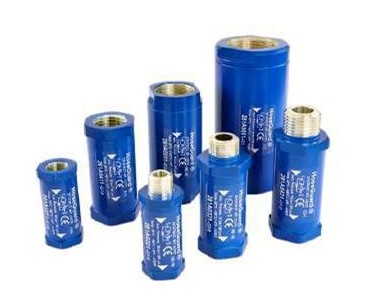

Protect-Air - HoseGuard® Air Safety Fuses Get latest price

Read more...

To contact Compressed Air Australia about Protect-Air HoseGuard® Air Safety Fuses use Get a quote.

Specifications of this product

• Operating pressure: Up to 18 bar

• Temperature range:

  • G¼" to G½": -20°C to 80°C

  • G¾" to G2": -20°C to 120°C

• Flow rates:

  • G¼": up to 990 Nl/min

  • G2": up to 12,920 Nl/min

• Pressure loss: 0.05 to 0.3 bar

• Materials:

  • Body: Aluminium (optional stainless steel)

  • O-rings: NBR/Buna-N

  • Piston: Aluminium or plastic, depending on size

Features

• Automatically shuts off air flow in the event of a hose rupture

• Tamper-proof factory setting – no adjustment required

• Integrated bleed hole enables automatic reset

• Compact, lightweight design for easy installation

• Complies with EN ISO 4414:2010 and Machinery Directive 2006/42/EC

• Complies with OSHA Standard 29 CFR - 1926.302(b)(7)

Applications

• Manufacturing and production lines

• Mining and heavy industry

• Automotive and mechanical workshops

• Food and pharmaceutical cleanrooms

• Any facility using pneumatic tools or systems

Why choose HoseGuard

• Enhances workplace safety by preventing hose whip accidents

• Minimises downtime with automatic reset function

• Supports compliance with international safety standards

• Available in aluminium and stainless steel
