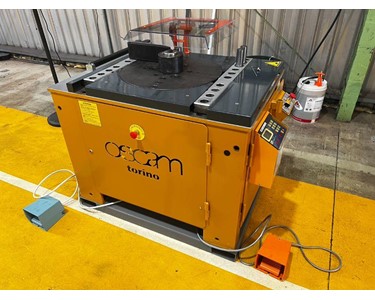

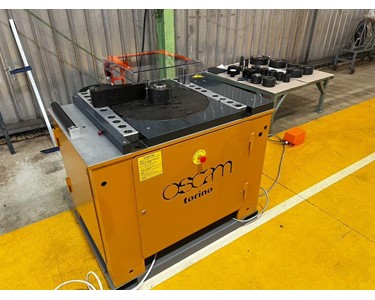

OSCAM - Rod Bending Machine K2 type Price Guide: $43,000 Get latest price

Read more...

To contact Delahenty Machinery about OSCAM Rod Bending Machine K2 type use Get a quote.

Thanks to its special bending system designed and patented by Oscam, which employs a fixed central pin, the rods are neither dragged nor ribbed during bending and this allows to maintain high precision levels. The automatic rod bending machines allow to create any bending angle and have an automatic return to the starting point. These machines are widely appreciated for the exceptional strength, proven durability and ease of use and simple maintenance.

Fitted with an epicycloidal reduction unit with very high performance levels that minimises steel consumption and ensures a long service life with virtually no maintenance.

To bend all types of iron up to a diameter of 50 mm

Two direction rotations to execute bends on the right and left-hand side without overturning the rods.

With EASY ANGLE electronic programmer as standard.

The electronic programmer Easy Angle is studied for the management of the bending cycle on bending machines and mesh bending machines.

It can be connected to a barcode reader or to a serial port to import working data (bending angles and number of pieces to produce)

It is possible to schedule the bending sequence of the main processed shapes as well as any desired shape.

Equipped with:

Counter cycle of the produced pieces with automatic stopping system at the end of the scheduled production
Auto-diagnostic system visualized on the display that shows possible anomalies
Possibility to adjust the angles without changing the set values up to +/- 9°. Particularly suitable when you have to process different types of iron.

It can be used on the mesh bending machines, combined cutting/bending machines,  and bending machines.

The bending machine has two speeds:

- Slow: 4 seconds to carry out 180° angles

- Fast: 3 seconds for bends up to 180°

The complete range of pins, bushes and rollers supplied allows to execute all the desired bends and angles and any kind of shape. The machine is supplied with a remote control pedal.

WEIGHT: 1050 Kg
