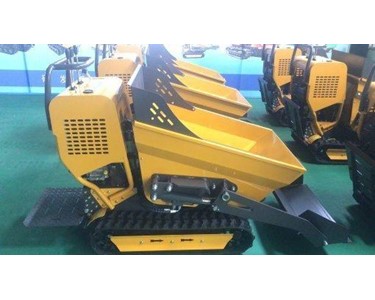

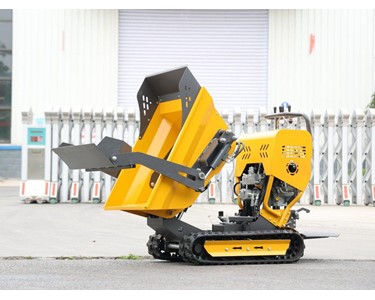

Mini Tracked Dumper 4.8KW | LY-F06 Price Guide: $8,580 Get latest price

Specifications:

• Model: LY-F06
• Machine weight: 400Kg
• Maximum load: 500Kg
• Engine parameters: Brand Belton
• Model: 130G
• Displacement (cc): 208
• Total power (HP)*@3600rpm 6.5 (4.8KW/3600)
• Fuel Capacity (L): 3.1
• Oil capacity (L): 0.6
• Integrated valve block Brand: Northern Hydraulic
• Composition: valve body, back pressure check valve, hydraulic control directional valve, direct-acting relief valve, electronically controlled directional valve, etc…
• Function: Control the stable operation of the vehicle and realize high and low speed switching of the vehicle
• Travel motor Brand: LeCroy Hydraulic
• Displacement: 200cc
• Maximum working pressure: 20MPa
• Maximum torque: 805Nm
• Walking speed: 1.7/3.5 (km/h)
• Minimum turning radius: 0.95m
• Track center distance: 520mm
• Minimum ground clearance: 85mm
• Climbing ability: 20°
• Hydraulic oil tank capacity: 7L
• Hydraulic oil product number: 46# anti-wear hydraulic oil
• Cargo box volume (m³): 0.22 (1040*730*590)

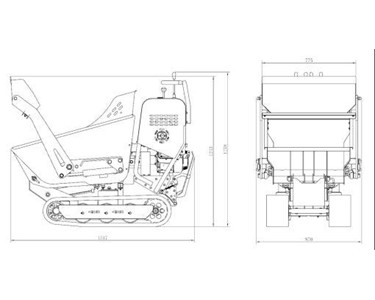

• Length x width x height (mm): 1517x870x1278

To contact Conon Motor about Mini Tracked Dumper 4.8KW | LY-F06 use Get a quote.
